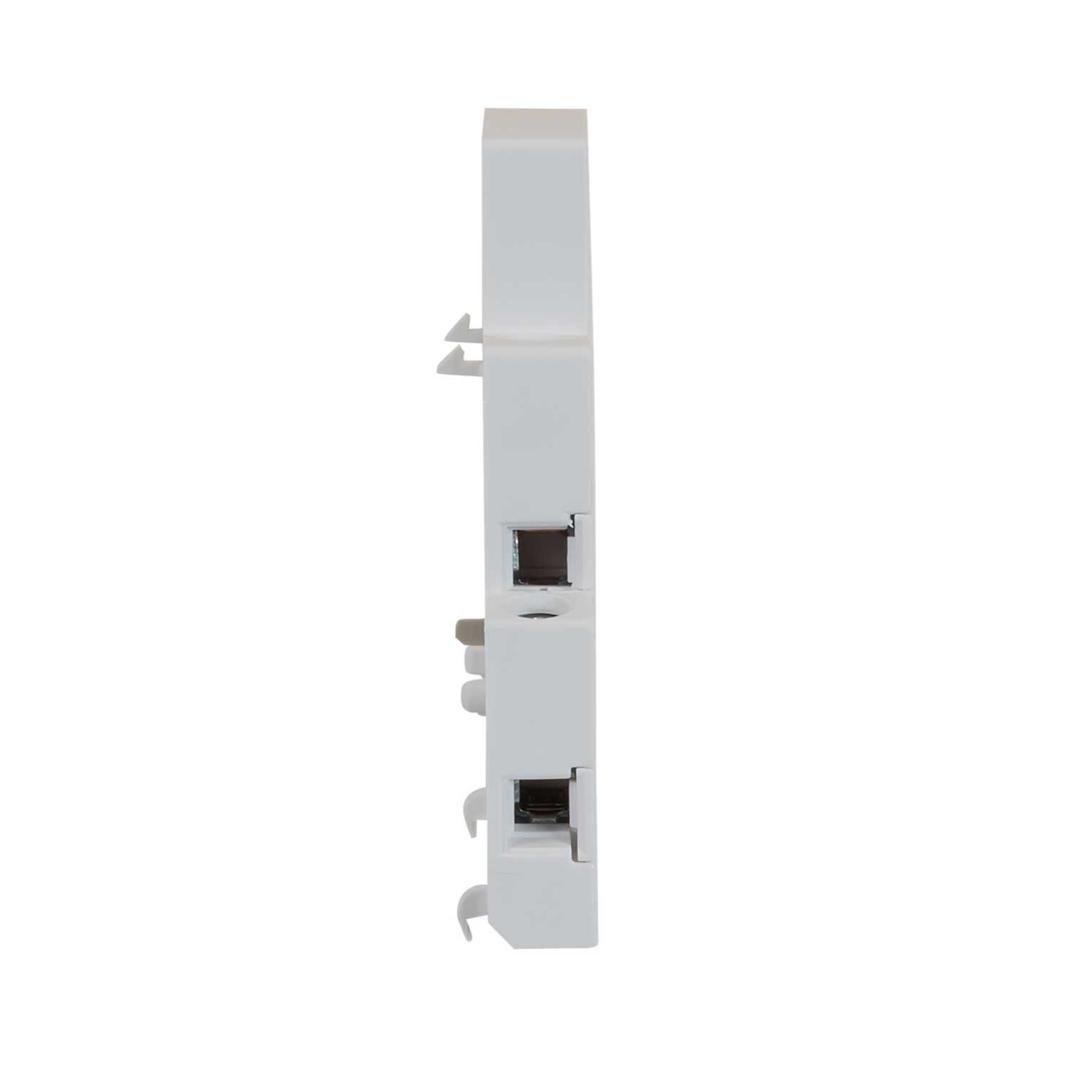

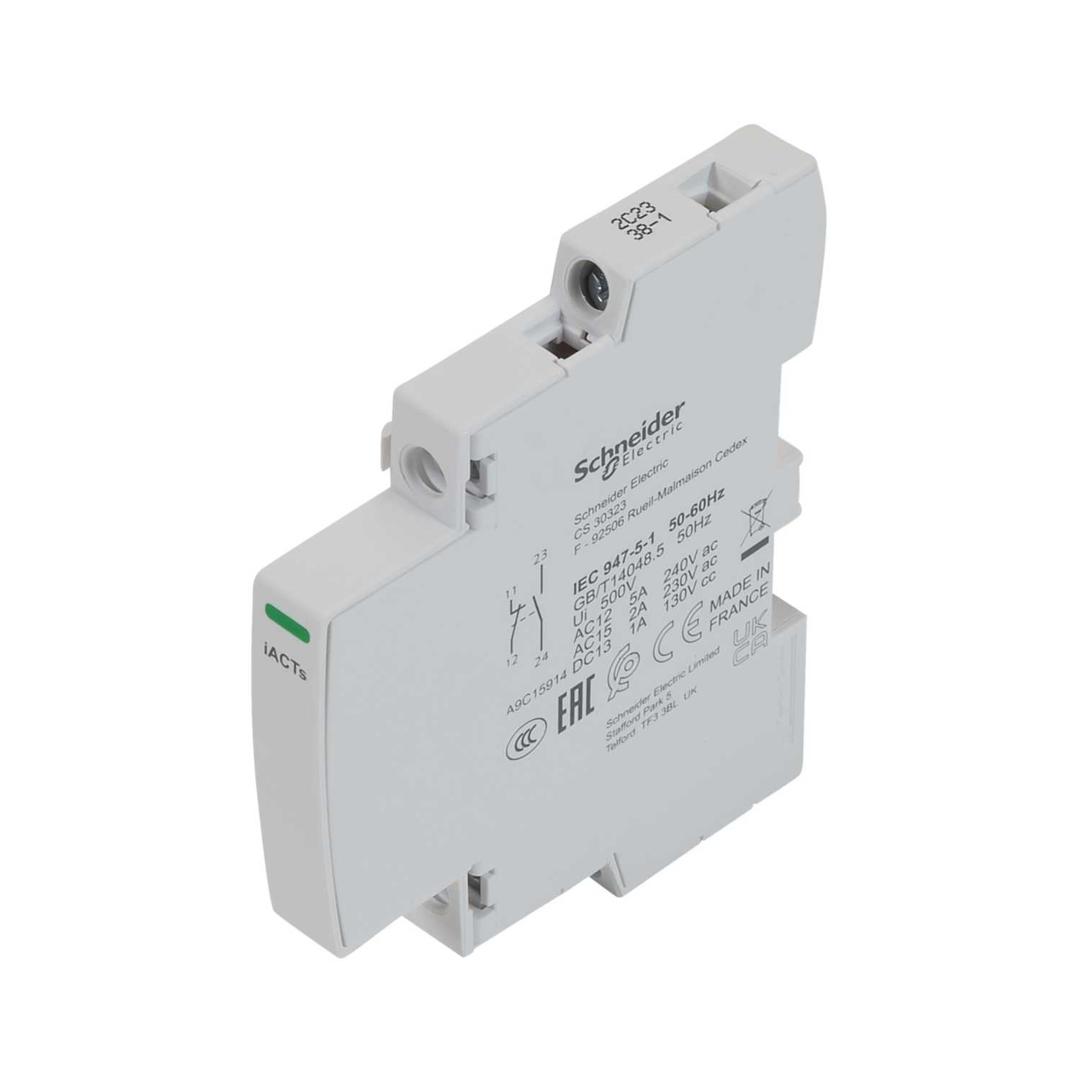

Schneider Remote Indication Auxiliary 1NO 1NC Acti9
Part Number: A9C15914
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- This product helps reporting the status of a contactor and is especially required in a connected environment
- Suitable with all Acti9 iCT contactors
- Operates from 24VAC to 240VAC and 24VDC to 130VDC
- DIN rail mountable
- Compliant with EN 60947-5 standard
- Has 1 open and 1 closed contacts
- Colour
- White/Green
- Compliance
- IEC 1095
- Contact Configuration
- 1 NO + 1 NC
- Depth
- 68mm
- Dimensions
- (H)81 mm x (W)9.0 mm x (D)68 mm
- Guarantee
- 18 Months
- Height
- 81mm
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Product Range
- Acti9
- Standards
- EN 60947-5
- Type
- Aux Contact
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 0.044kg
- Width
- 9.0mm
