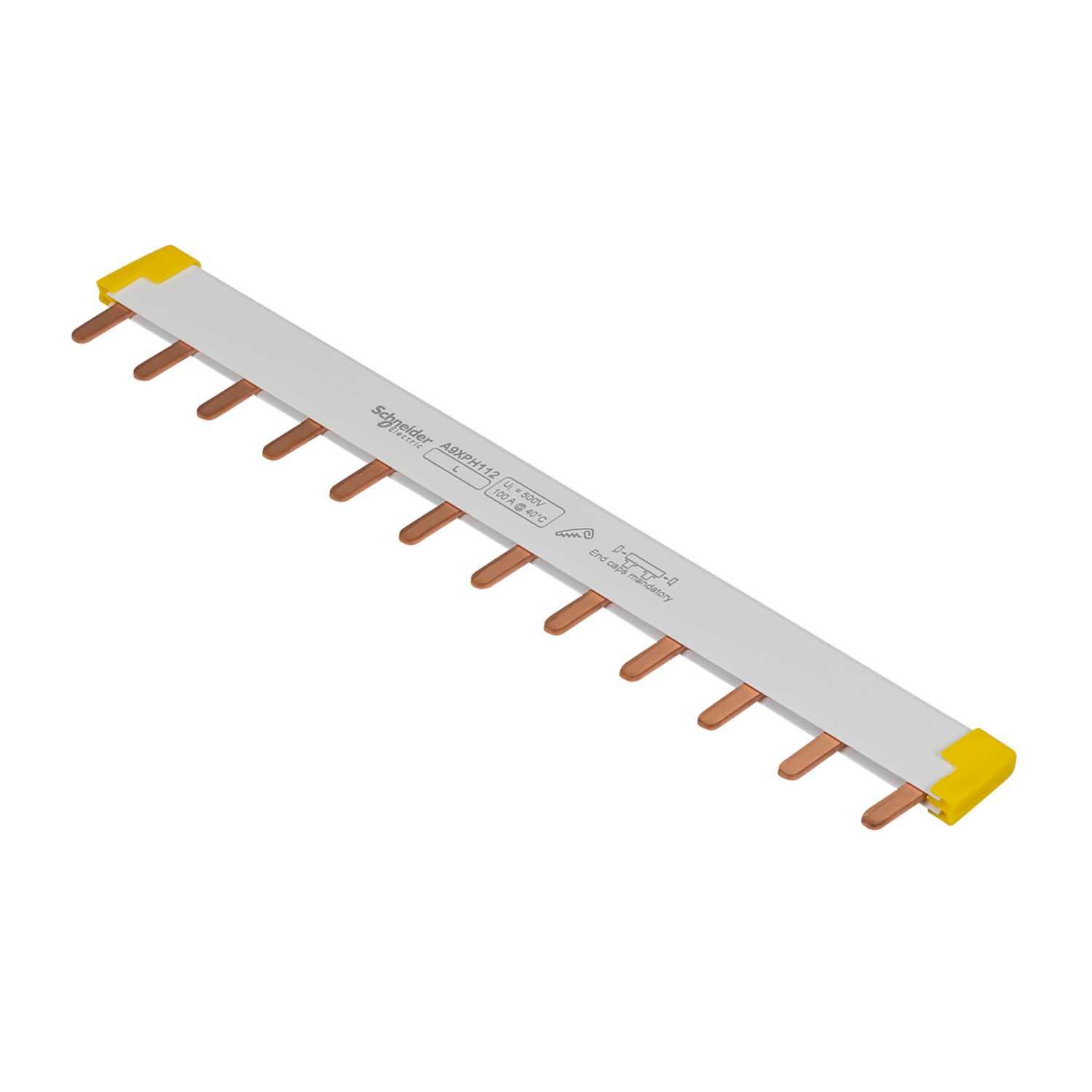

Schneider 100A 12 Module 1 Pole Acti9 Comb Busbar
Part Number: A9XPH112
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Single phase insulated comb busbar
- Allows a quicker install with no cables feeding the protective devices
- Ie rated operational current at 40°C is 100A
- Can be cut to desired number of modules and must be insulated with supplied end caps
- Colour
- White
- Current Rating
- 100A
- Dimensions
- (L)220 mm
- Guarantee
- 18 Months
- Insulated
- Yes
- Length
- 220mm
- Material
- Copper, Polyethylene
- Number Of Poles
- 1 Pole
- Number Of Ways
- 12
- Packaging Types
- Each
- Product Range
- Acti9
- Standards
- IEC 61439-2 IEC 60947-7-1 IEC 60695-2-1 IEC 61439-1
- Type
- Busbar
- Unspsc V18
- 39121117
- Unspsc V24
- 39121117
- Voltage Rating
- 415V AC
- Weight
- 0.054kg
