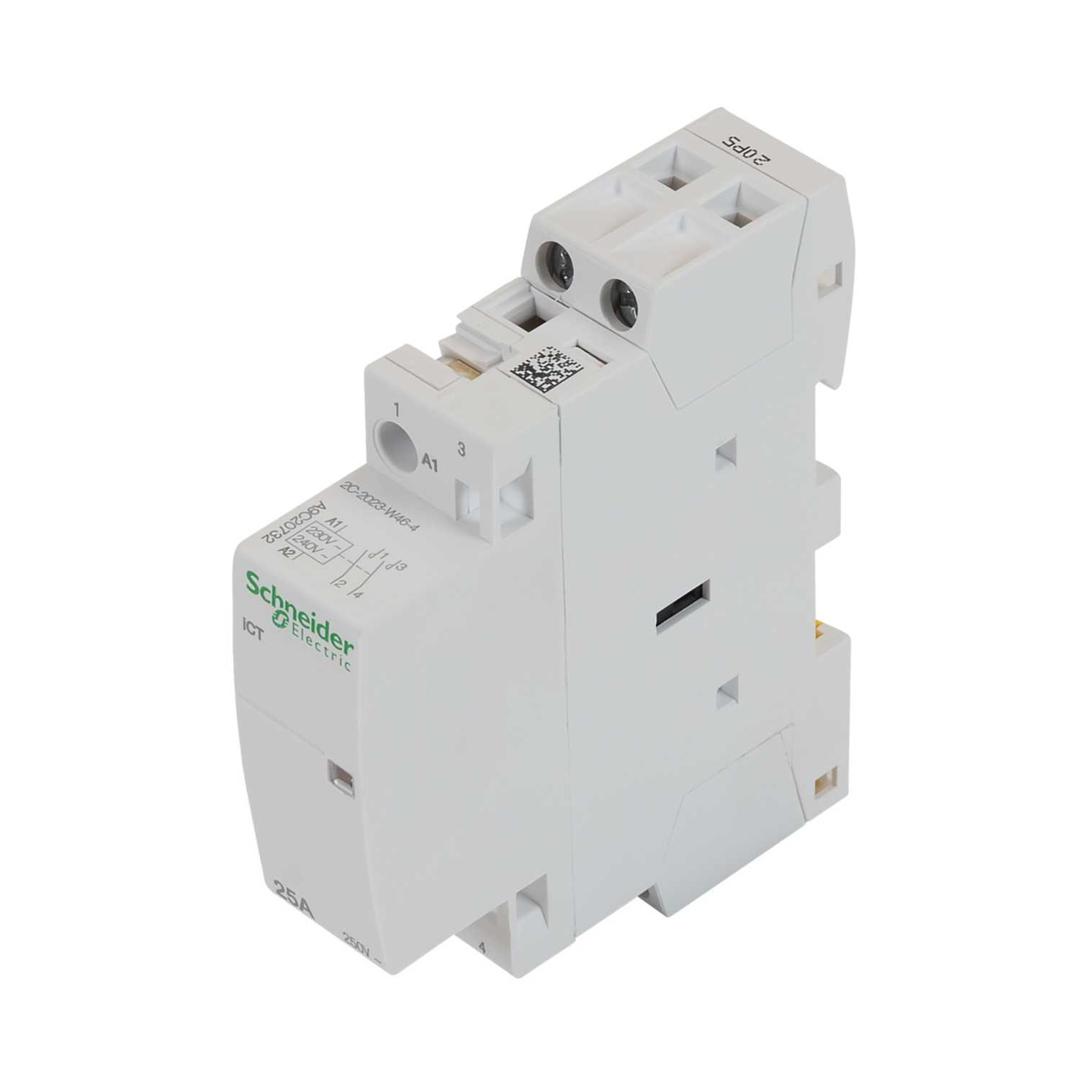

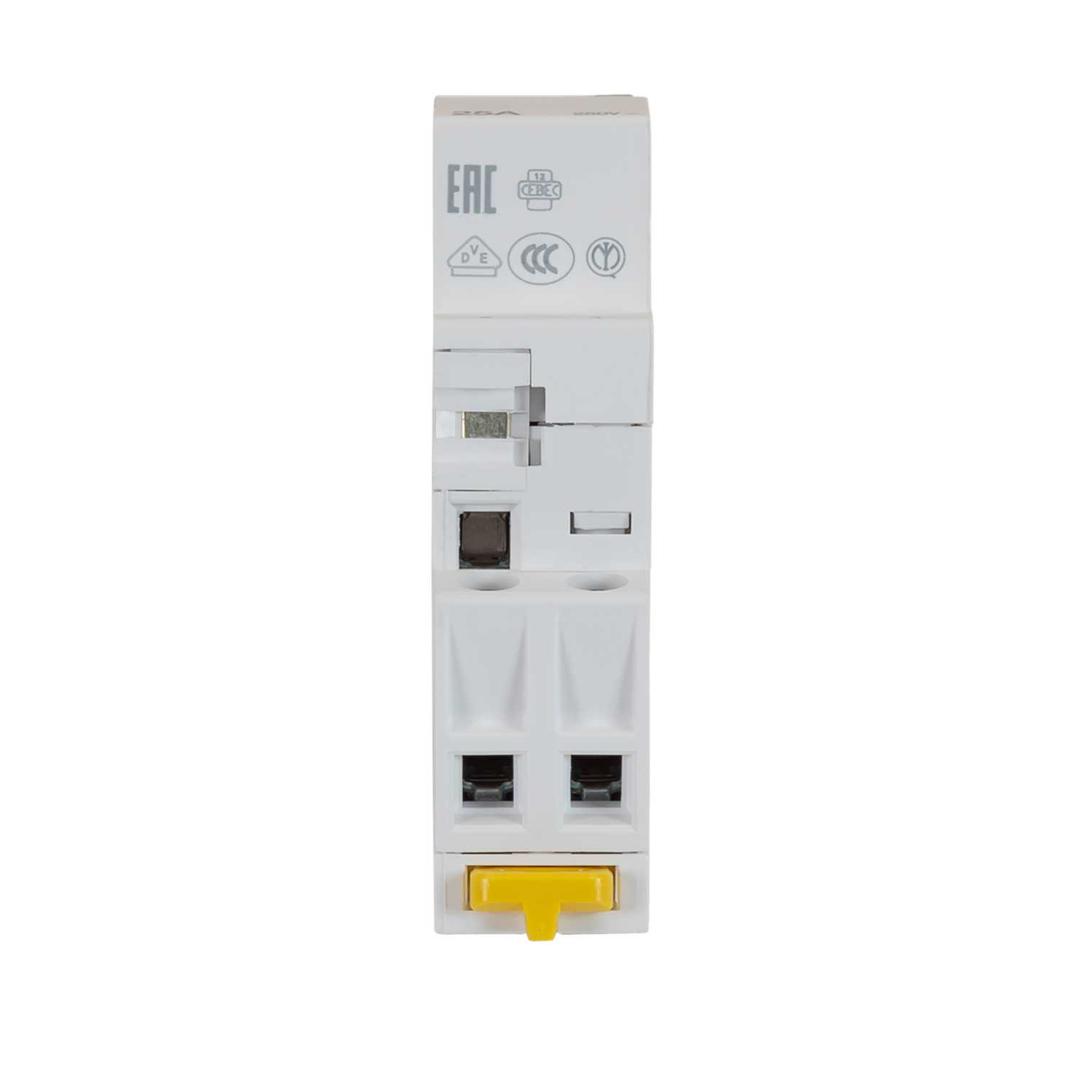

Schneider 25A 1 Module Contactor 2NO 240V AC
Part Number: A9C20732
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Suitable for heating, motor control and lighting loads
- 240V AC coil
- DIN rail mounted
- EN 61095
- In rated current is 25A for AC-7a and 8.5A for AC-7b
- Coil Voltage
- 240V AC
- Colour
- White/Green
- Contact Configuration
- 2 NO
- Current Rating
- 25A
- Depth
- 68.5mm
- Dimensions
- (H)81 mm x (W)18 mm x (D)68.5 mm
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Height
- 81mm
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of Poles
- 2 Pole
- Packaging Types
- Each
- Product Range
- Acti9
- Standards
- IEC/EN 61095
- Type
- Contactor
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Rating
- 250V AC
- Weight
- 0.119kg
- Width
- 18mm
