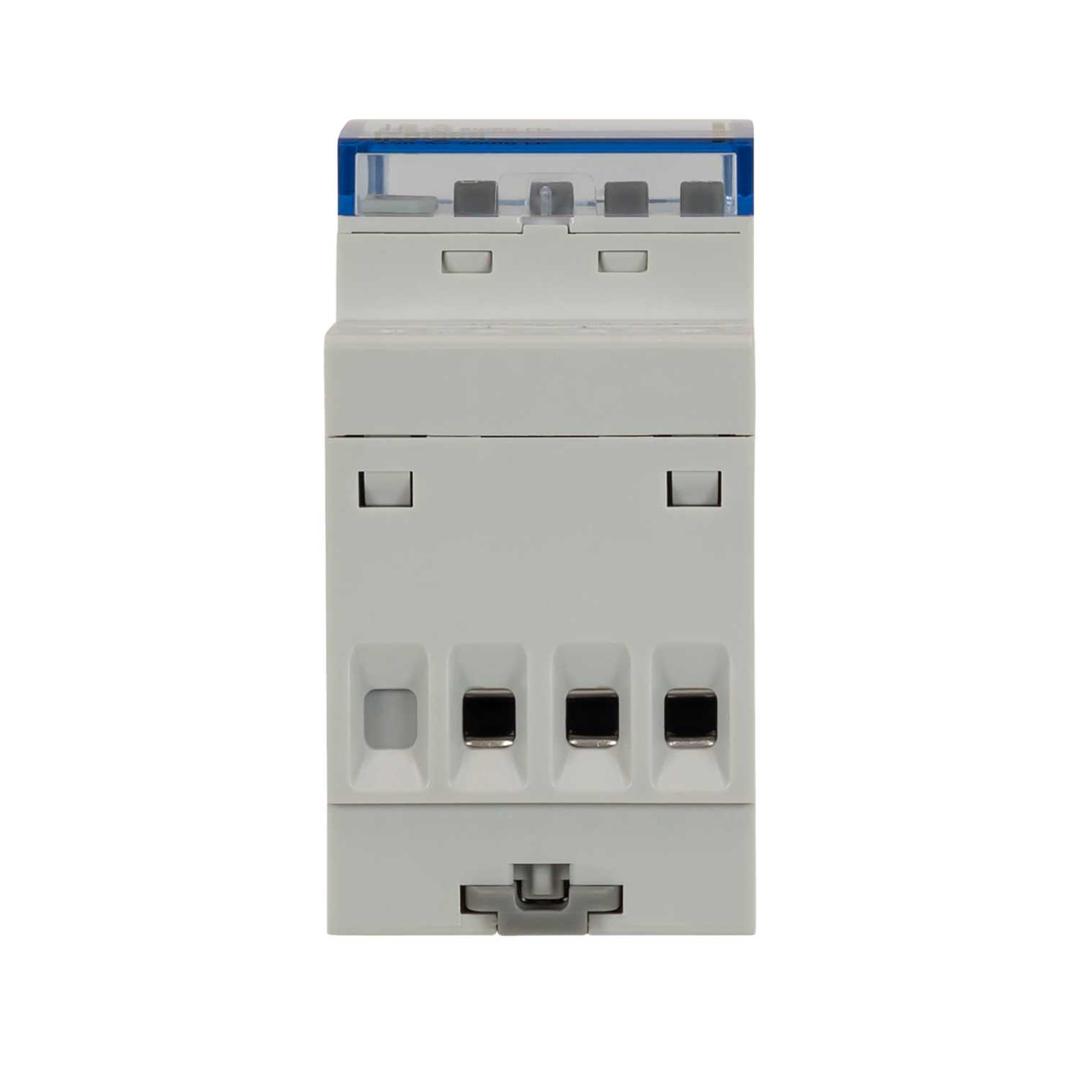

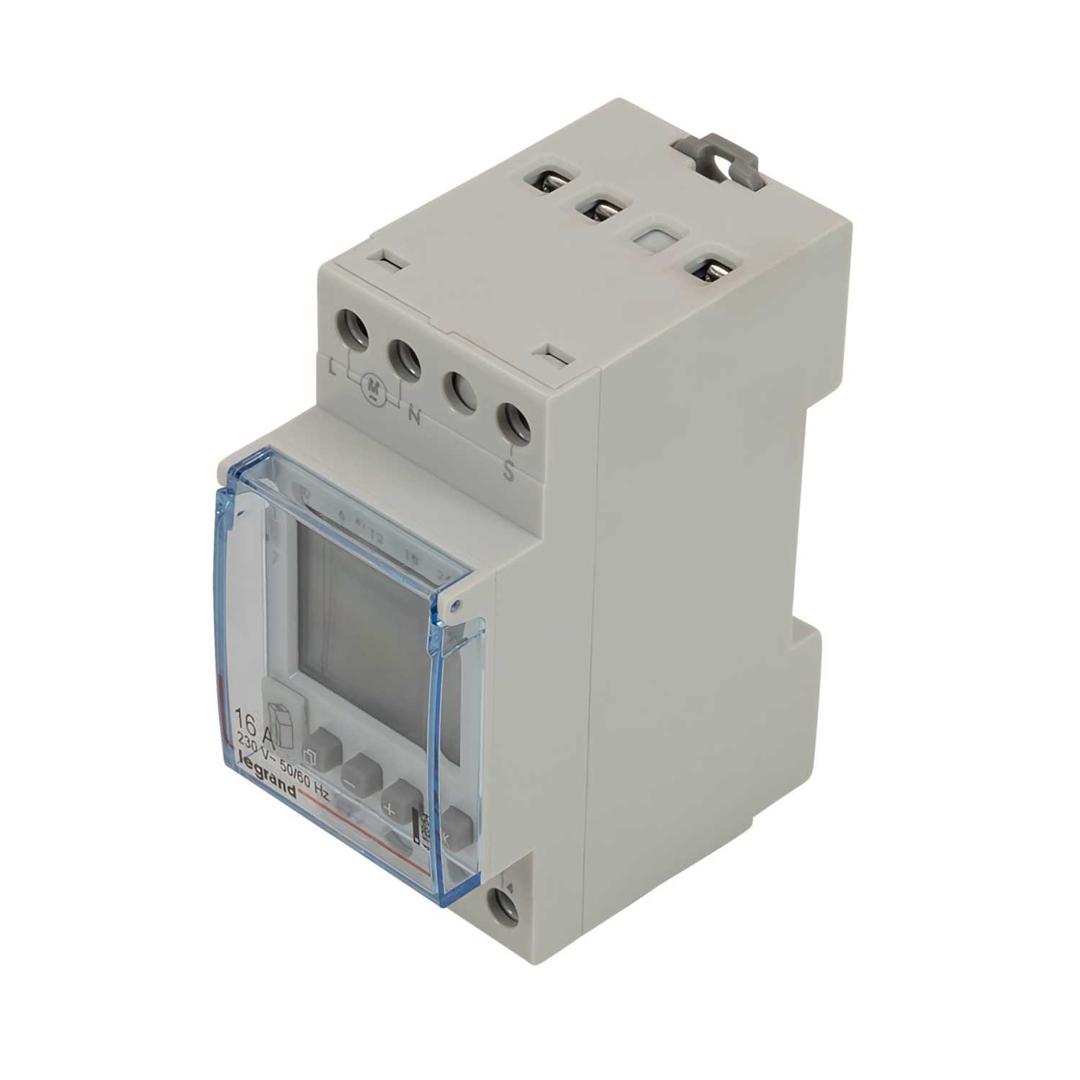

Legrand 16A 230V 2 Module Astronomical Digital Time Clock
Part Number: 412654
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- For switching on/off lights and other electric devices according to the rising/setting of the sun
- Function for creating switching programs in which the devices are switched according to astronomical time and/or fixed preset times
- Daily astronomical calculation of the sunrise/sunset times based on the entered location or location coordinates
- Offset for sunrise and sunset times can be adjusted up to ± 120 min
- Backlit digital display
- Mains supply with 5 year clock working reserve
- No separate light sensor required
- Battery Back Up
- Yes
- Colour
- Grey
- Current Rating
- 16A
- Current Rating Inductive
- 10A
- Depth
- 60mm
- Dimensions
- (H)86 mm x (W)35 mm x (D)60 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 86mm
- Material
- Plastic
- Minimum Switching Time
- 1s
- Mounting
- DIN Rail
- Number Of Channels
- 1
- Number Of Modules
- 2
- Packaging Types
- Each
- Product Range
- AlphaRex³ Series
- Programmable
- 56 Programs
- Standards
- EN 60730-1 EN 60730-2-7
- Type
- Time Switch
- Unspsc V18
- 39122208
- Unspsc V24
- 39122208
- Voltage Rating
- 250V AC
- Weight
- 0.164kg
- Width
- 35mm
