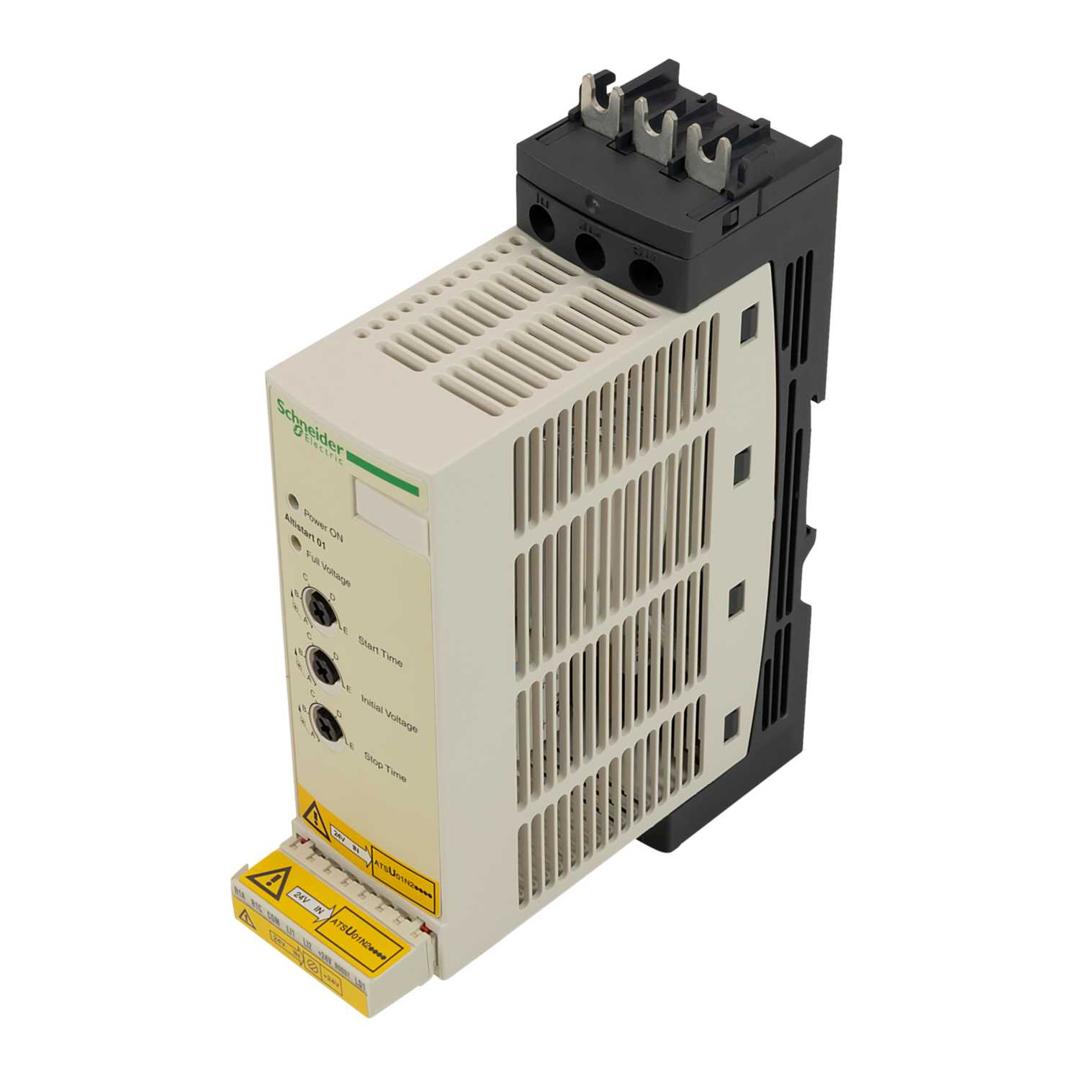

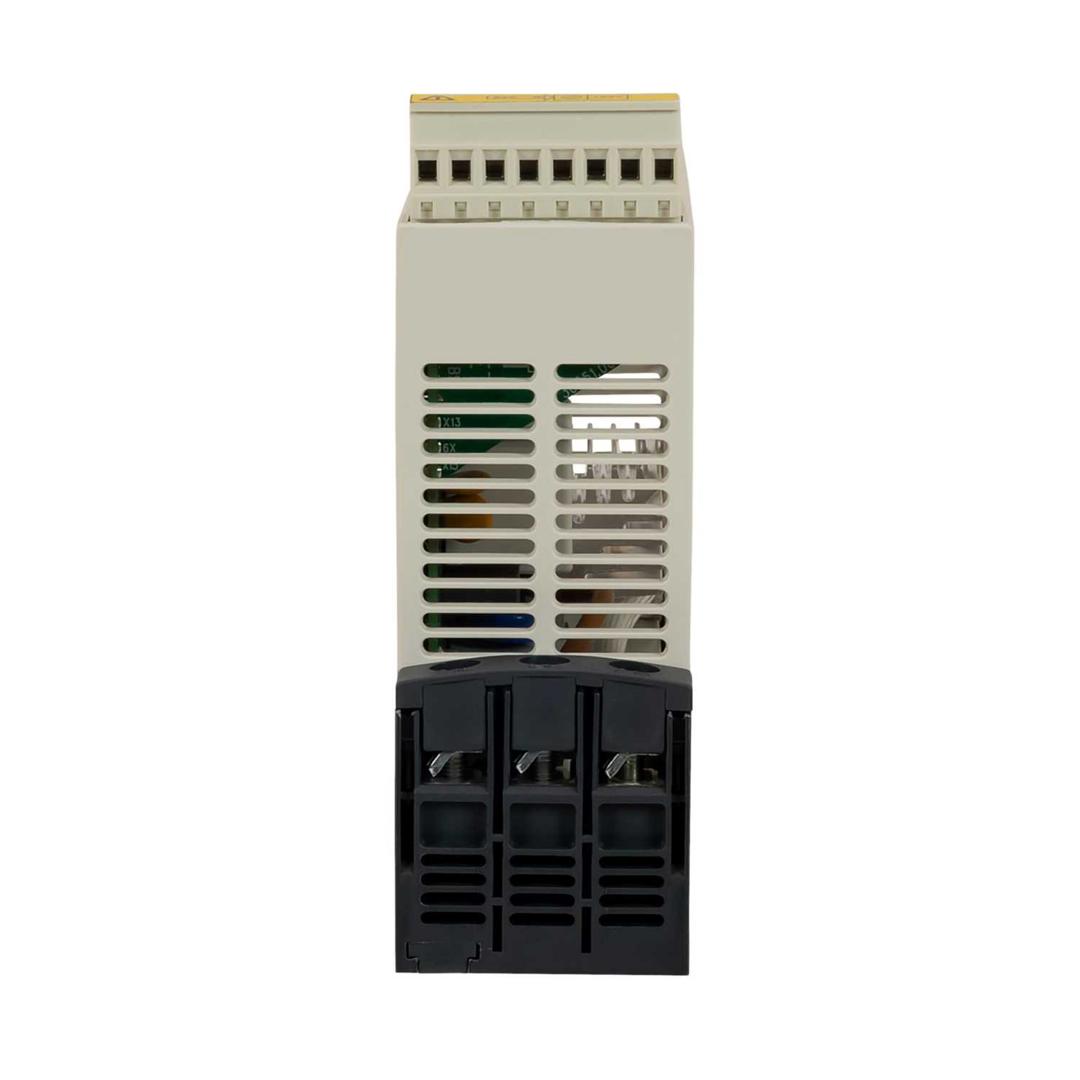

Schneider Altistart U01 22A 4-11kW 200-480V AC Soft Start/Stop for Asynchronous Motor
Part Number: ATSU01N222LT
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- DIN rail mounted soft start/soft stop unit for 3-phase asynchronous motors
- Designed primarily for combinations with TeSys U starter-controllers
- Start with voltage ramp
- Integrated bypass that reduces noise and decreases heat dissipation
- Supply voltage 200V to 480V AC
- Control circuit voltage 24V DC
- Current Rating
- 22A
- Depth
- 170mm
- Dimensions
- (H)314 mm x (W)45 mm x (D)170 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 314mm
- Ip Rating
- IP20
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- Altistart U01 and TeSys U
- Standards
- IEC 60947-4-2
- Type
- Soft Starter
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Weight
- 0.544kg
- Width
- 45mm
