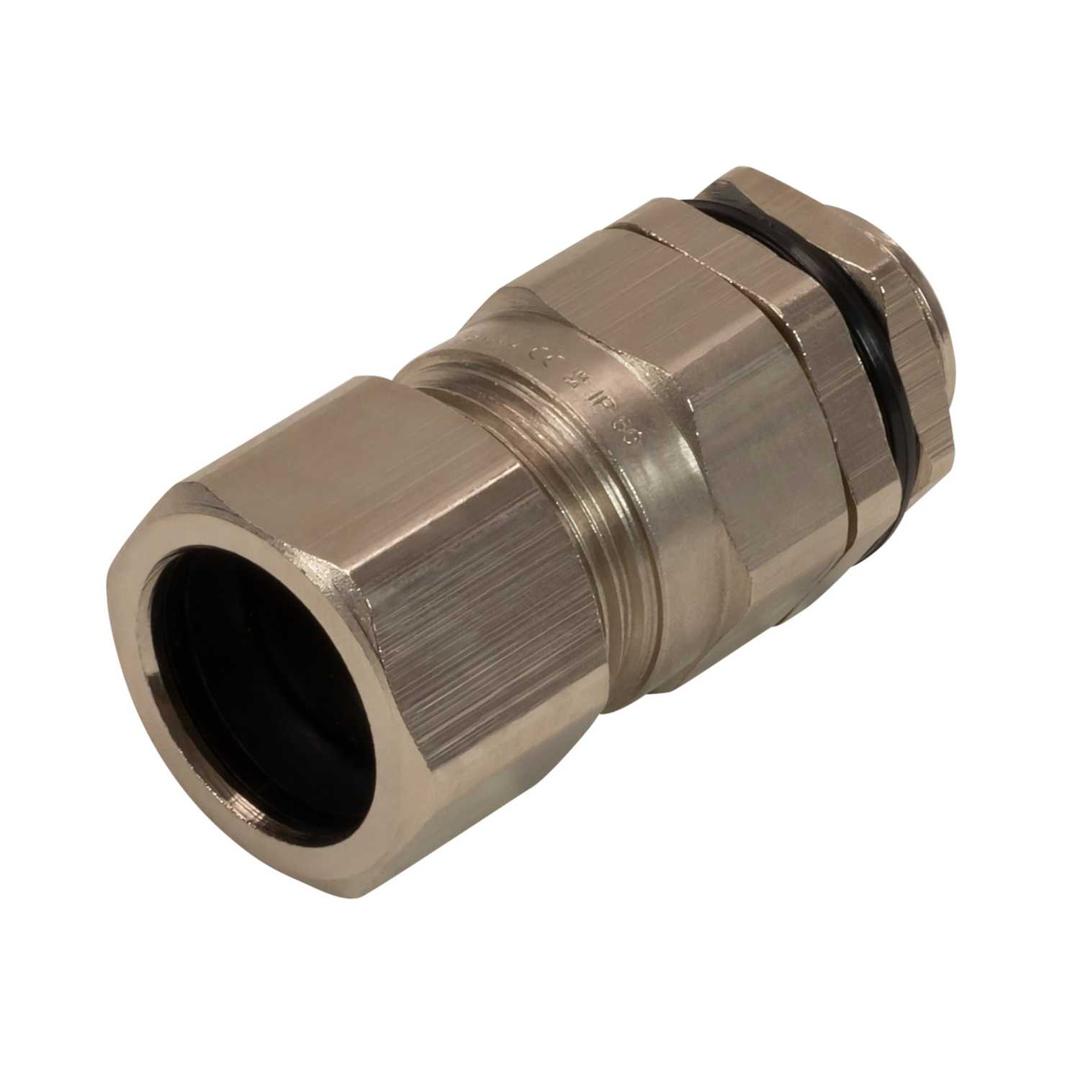

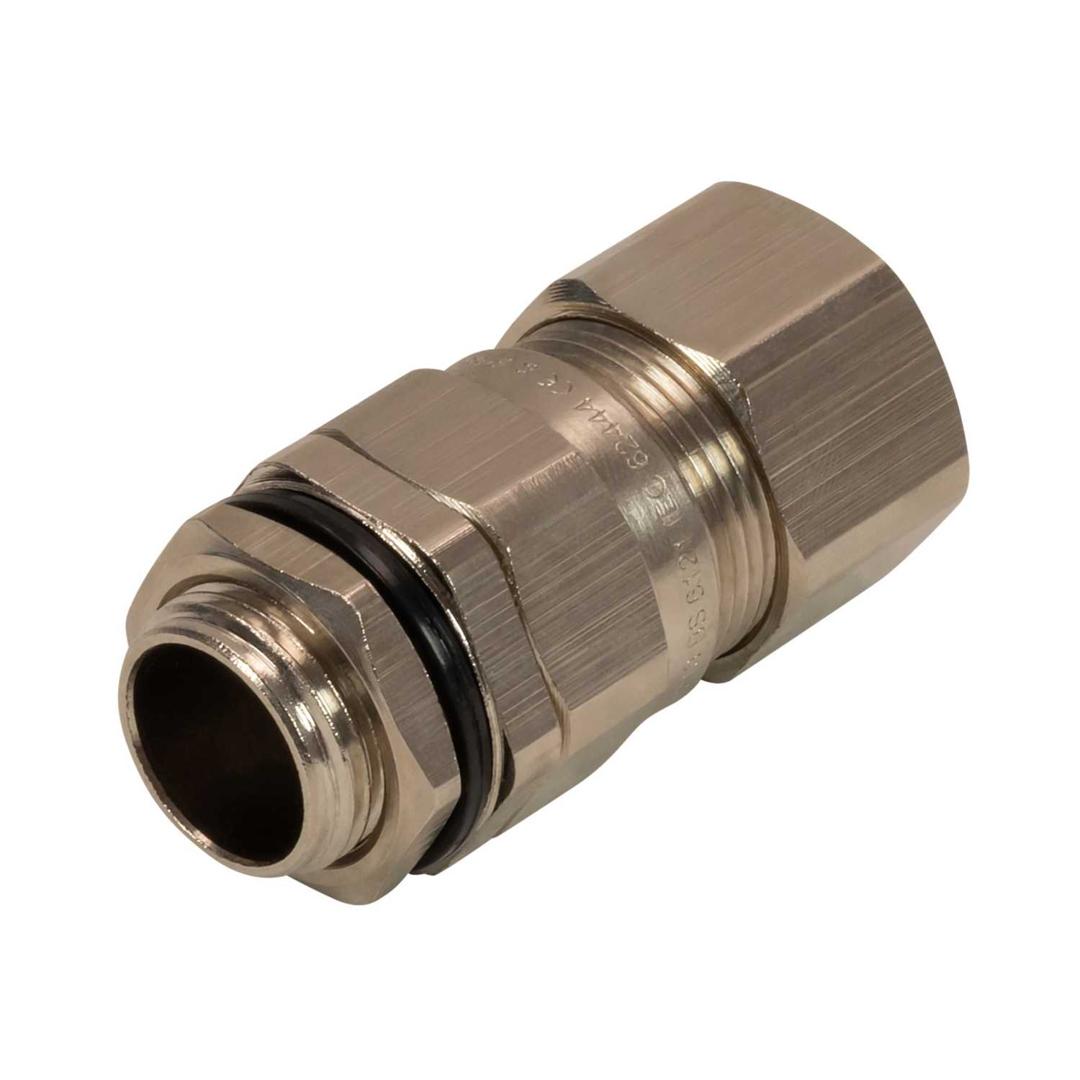

CCG 20mm Metal SWA Cable Gland with Locknut IP65
Part Number: 051201
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Size 20 captive component gland for steel wire and aluminium armoured cable
- For indoor and outdoor use
- Two-piece handling, no loose parts
- Freely rotating captive cone and inspectable cone ring, providing an inspectable armour clamp and earth bond without twisting the armouring
- Patented disconnect armoured clamp system for ease of inspection
- Provides a seal on the outer sheath of the cable sealing to IP65/66
- Precision manufactured from high-quality brass (nickel plated)
- Complete with thread sealing gasket and heavy-duty locknut
- Cable Size Range
- 14.5 - 20.5mm²
- Colour
- Silver
- Diameter
- 20mm
- Dimensions
- (L)66 mm x (Dia)20 mm
- Finish
- Nickel Plated
- Guarantee
- 1 Year
- Ip Rating
- IP66
- Length
- 66mm
- Material
- Brass
- Packaging Types
- Each
- Product Range
- CW
- Standards
- AS/NZS 3000
- Supplied With
- Thread Sealing Gasket, Locknut
- Thread Size
- 20mm
- Type
- Metal SWA Gland
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 0.115kg
