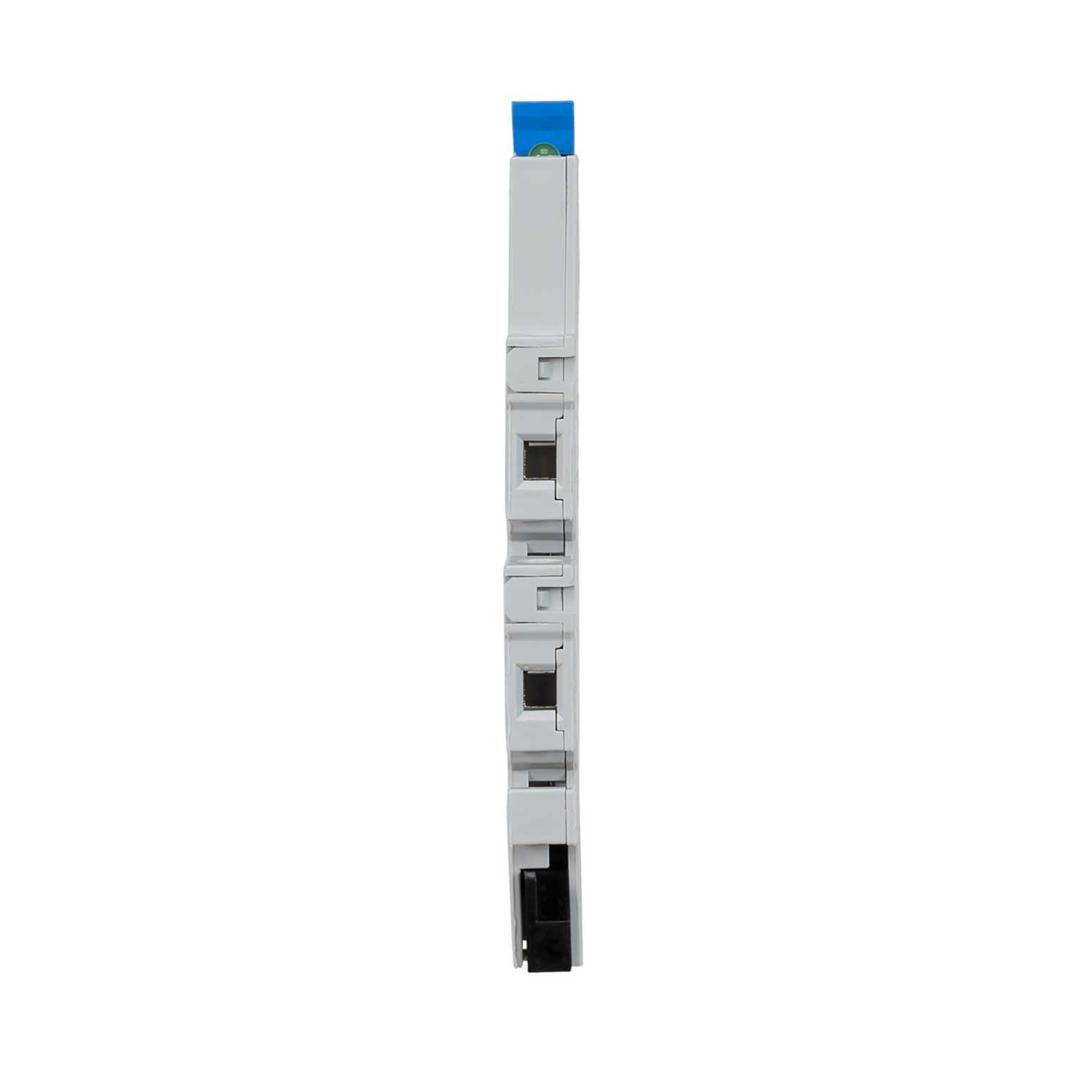

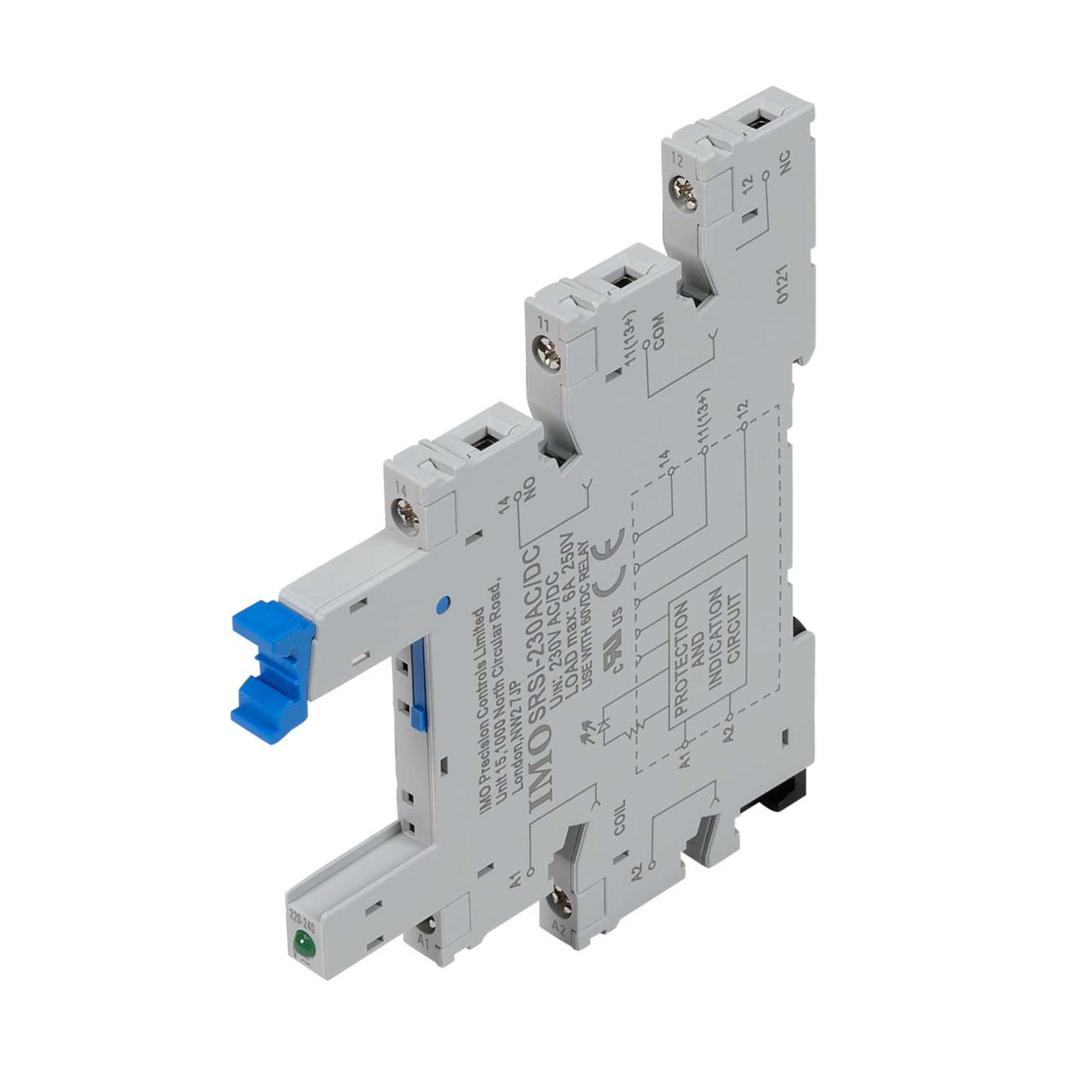

IMO Relay Socket Base for ETS Relays 250V AC/DC DIN Mount
Part Number: SRSI-230AC/DC
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- For use with ETS and ETE 60VDC slimline relays
- Built-in protection circuit can indicate the power status, protect the circuit and expand the range of relay input voltage
- Design ensures secure retention and easy ejection of relays
- Range of available accessories
- Colour
- Grey
- Current Rating
- 6A
- Depth
- 70.9mm
- Dimensions
- (H)88.3 mm x (W)6.3 mm x (D)70.9 mm
- Guarantee
- 1 Year
- Height
- 88.3mm
- Material
- Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- Relay Socket (Base)
- Standards
- RoHS compliant
- Suitable For
- ETS and ETE Relays
- Type
- Relay Base
- Unspsc V18
- 39122335
- Unspsc V24
- 39122335
- Voltage Range
- 220-240 V AC/DC
- Voltage Rating
- 250
- Weight
- 0.028kg
- Width
- 6.3mm
