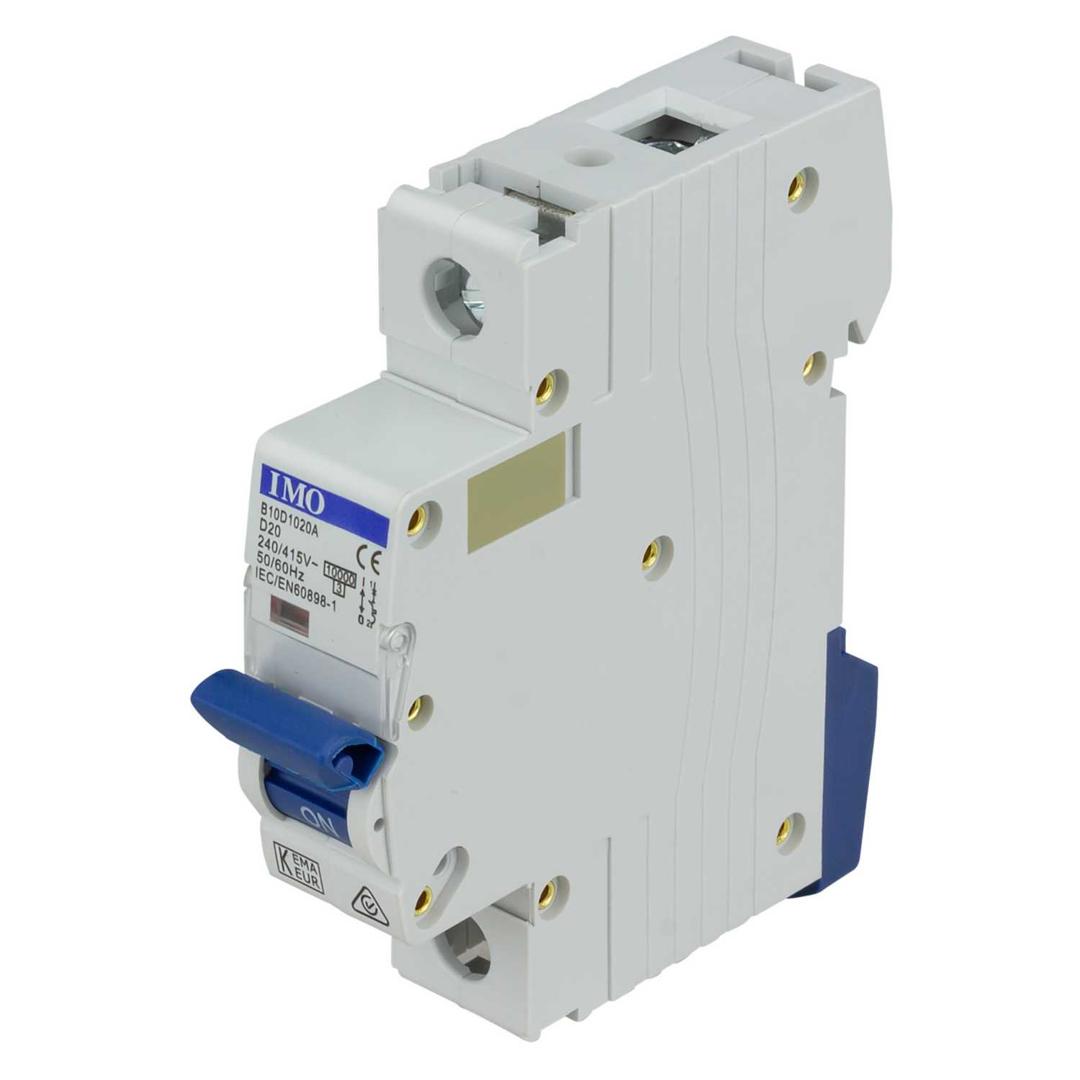

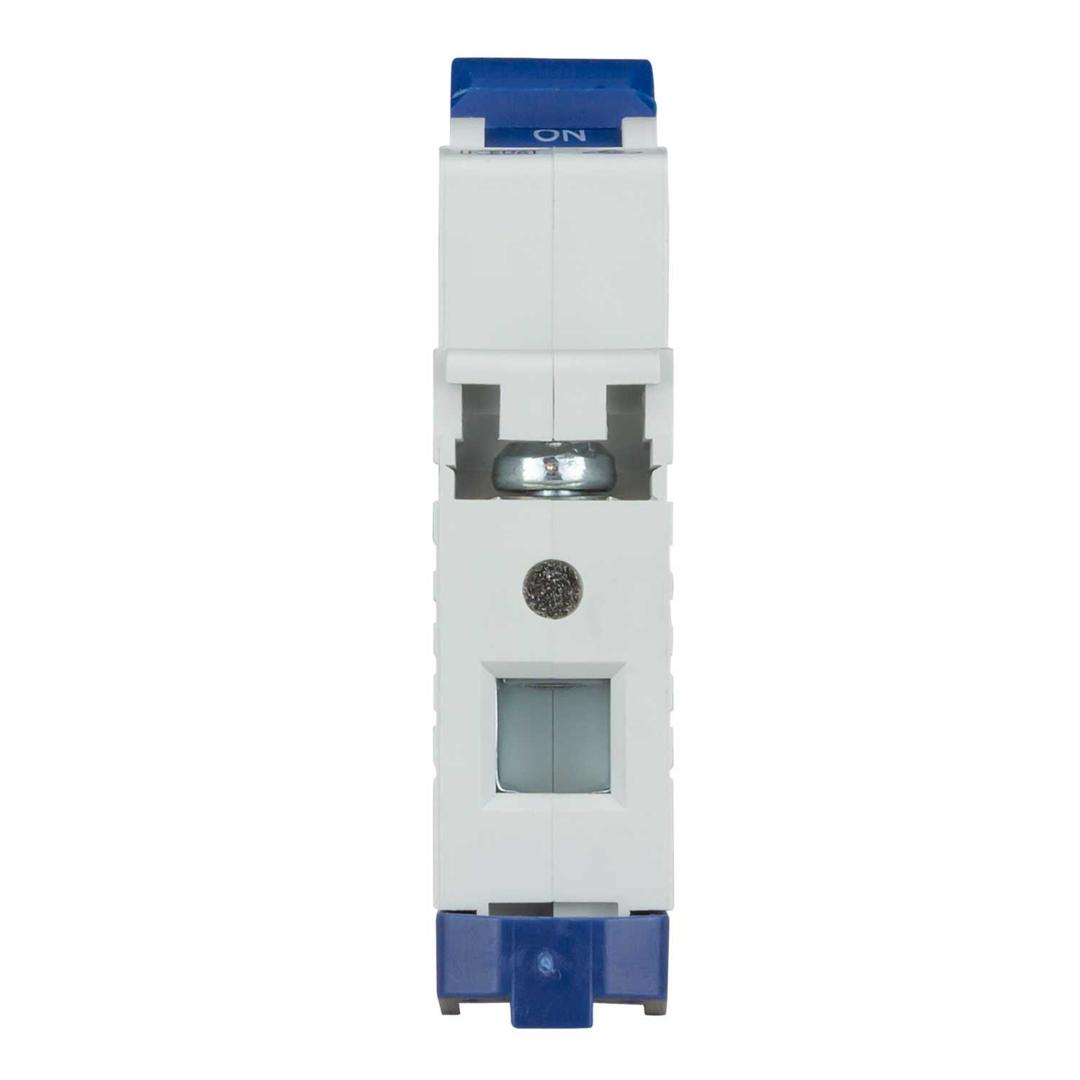

IMO 20A 1 Pole 10kA D Curve MCB
Part Number: B10D1020A
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 1 phase miniature circuit breaker
- Thermal-magnetic tripping for overload and short circuit protection
- Positive contact and trip indication
- 2 N m tightening torque on top or bottom connections
- Provision for padlocking
- Terminal capacity 35mm² solid, 25mm² stranded conductor
- Colour
- Grey
- Current Rating
- 20A
- Depth
- 78mm
- Dimensions
- (H)85.5 mm x (W)17.6 mm x (D)78 mm
- Guarantee
- 1 Year
- Height
- 85.5mm
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Product Range
- Circuit Protection
- Short Circuit Rating
- 10kA
- Standards
- IEC 60898-1
- Tripping Characteristics
- D Curve
- Type
- Miniature Circuit Breaker
- Voltage Rating
- 240V AC
- Weight
- 0.113kg
- Width
- 17.6mm
