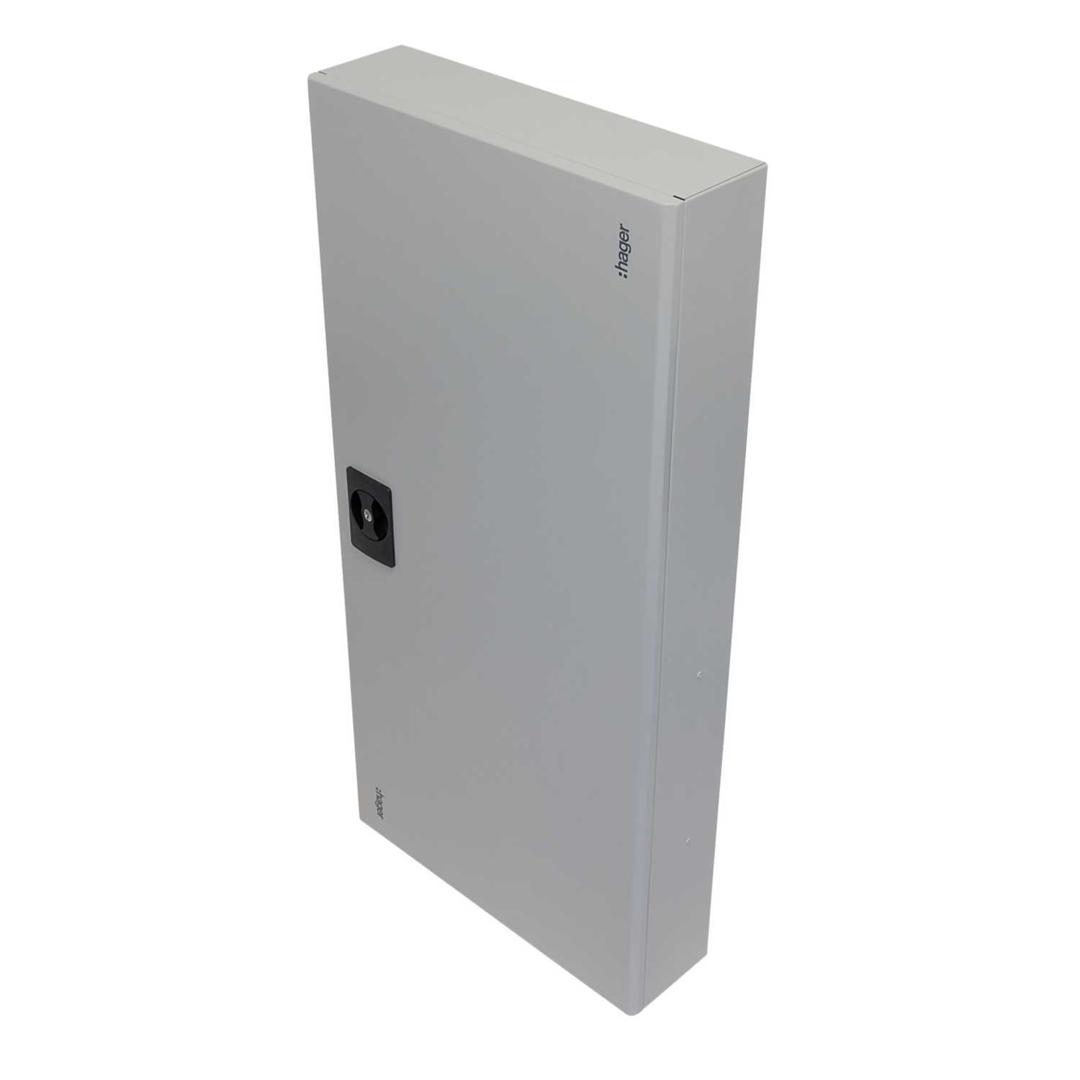

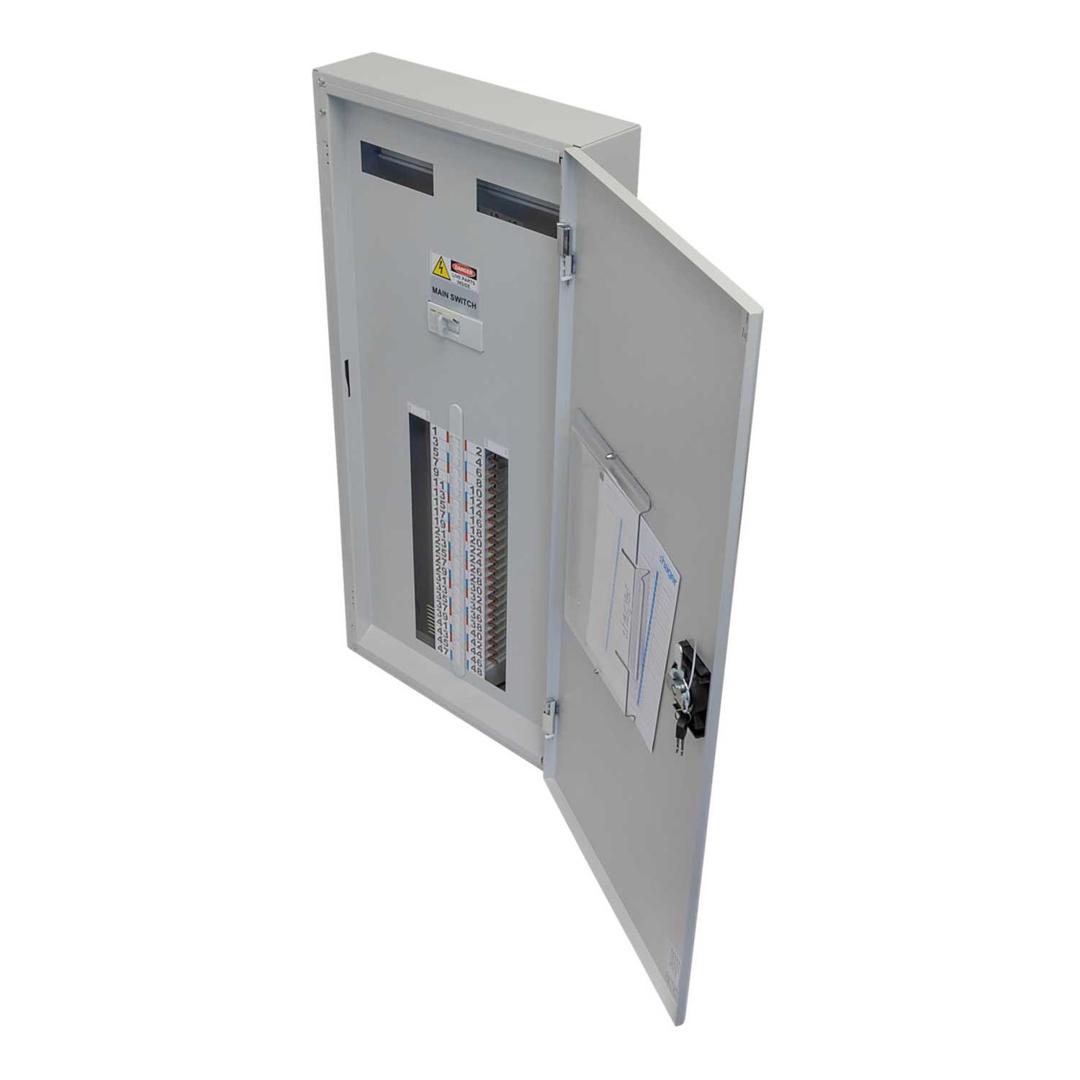

Hager 48 Way 250A Main Switch invicta TPN Panelboard Grey
Part Number: JVC4800S25TW
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 phase metal distribution board constructed from 1.2mm galvanised steel, polyester powder coated RAL7035 light grey
- 250A isolator main switch
- 250A rated busbar
- Fully type tested chassis
- Chassis designed to take 6kA MCB and onekombo range of single module RCBOs
- 2 x 8 pole DIN space each side of main incomer
- Split neutral and earth bars with M8 connection studs
- Flush CL001 key lockable handle with open/close indication
- Safety pole fillers remain with chassis when escutcheon is removed
- Circuit identification card
- Positive MCB alignment system
- 36 way DIN rail extension box available (JVC0EXTDW)
- Busbar Rating
- 250A
- Cable Entry
- Removable Gland Plate Bottom
- Colour
- Light Grey
- Current Rating
- 250A
- Depth
- 135mm
- Dimensions
- (H)1000 mm x (W)480 mm x (D)135 mm
- Door Type
- Hinged / Reversible
- Finish
- Powder Coated
- Guarantee
- 2 Years
- Height
- 1000mm
- IP Rating
- IP30
- Ik Rating
- IK05
- Lockable
- Yes
- Material
- Galvanised Steel
- Mounting
- Surface
- Number Of Outgoing Ways Upto63 A
- 48
- Packaging Types
- Each
- Product Range
- invicta Panelboards
- Standards
- AS/NZS 61439
- Type
- Distribution Board
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 415V AC
- Weight
- 25kg
- Width
- 480mm
