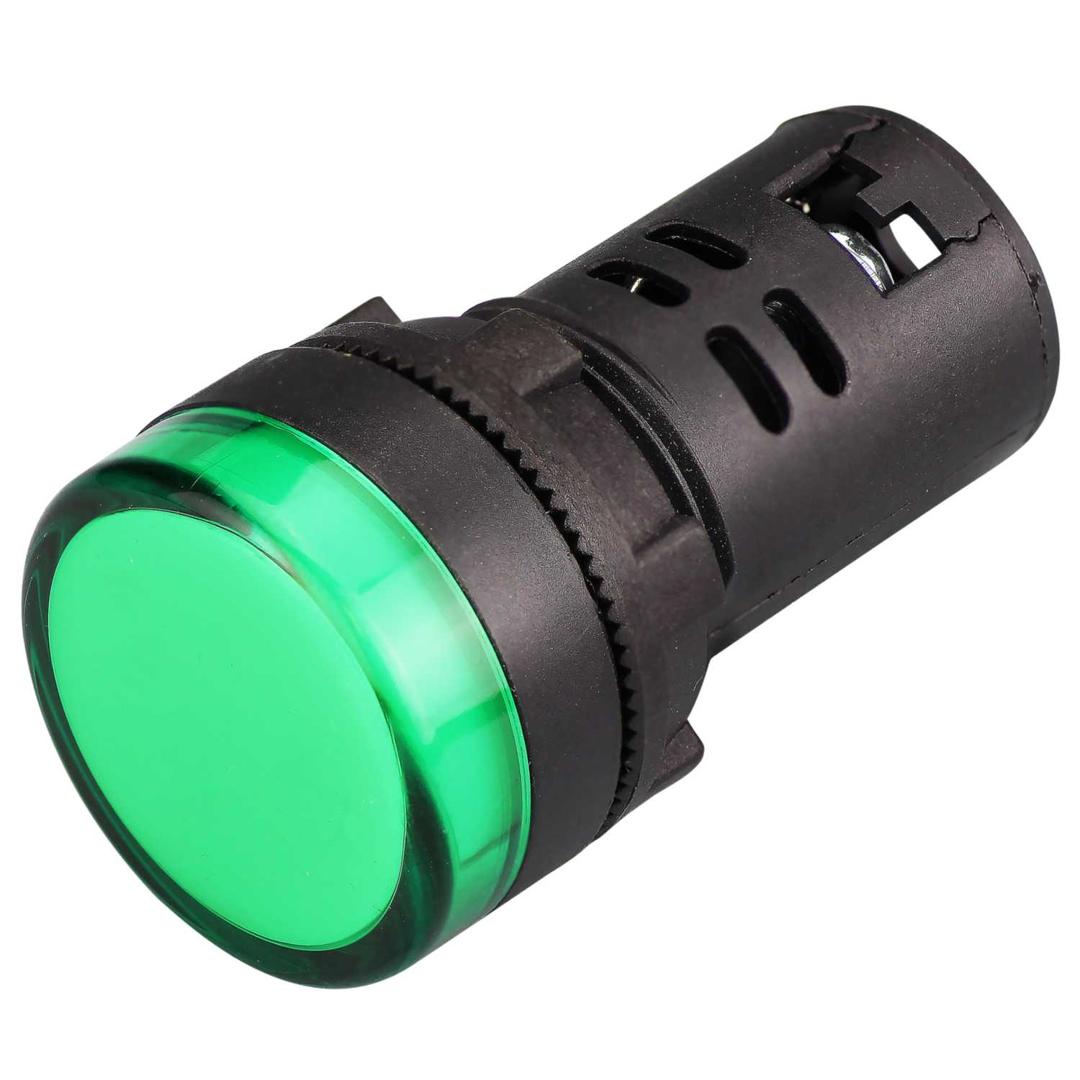

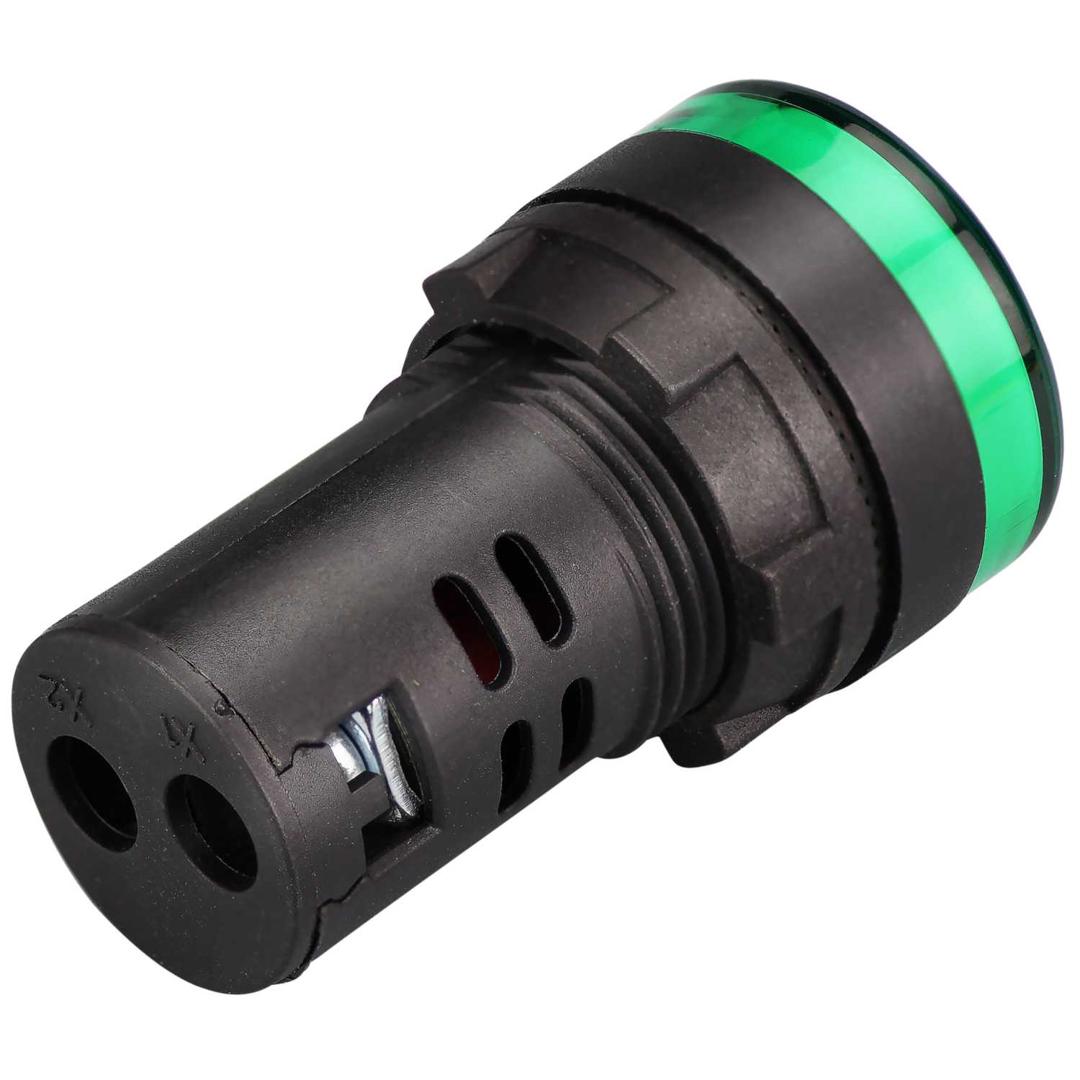

IMO 230V AC LED IP65 Pilot Light Green
Part Number: PL05C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Single hole fixing 22.5mm for panel or enclosure mount
- 230V AC operation
- Multi chip LED
- Bright and colour intensive light distribution
- CE approval
- IMO model number LMB-230-GREEN
- Colour
- Green
- Compliance
- CE
- Cut Out
- 22.5mm
- Diameter
- 22mm
- Dimensions
- (L)50 mm x (Dia)22 mm x (W)29 mm
- Guarantee
- 1 Year
- Illuminated
- Yes
- Ip Rating
- IP65
- Length
- 50mm
- Lens Colour
- Green
- Light Source
- Integral LED
- Material
- Flame Retardant Plastic
- Maximum Operating Temperature
- 55°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel Mount/Pushbutton Enclosure
- Packaging Types
- Each
- Product Range
- Pilot Lights
- Standards
- EN 55015 EN 61547
- Type
- Pilot Light
- Unspsc V18
- 39121534
- Unspsc V24
- 39121534
- Voltage Rating
- 230V AC
- Weight
- 0.025kg
- Width
- 29mm
