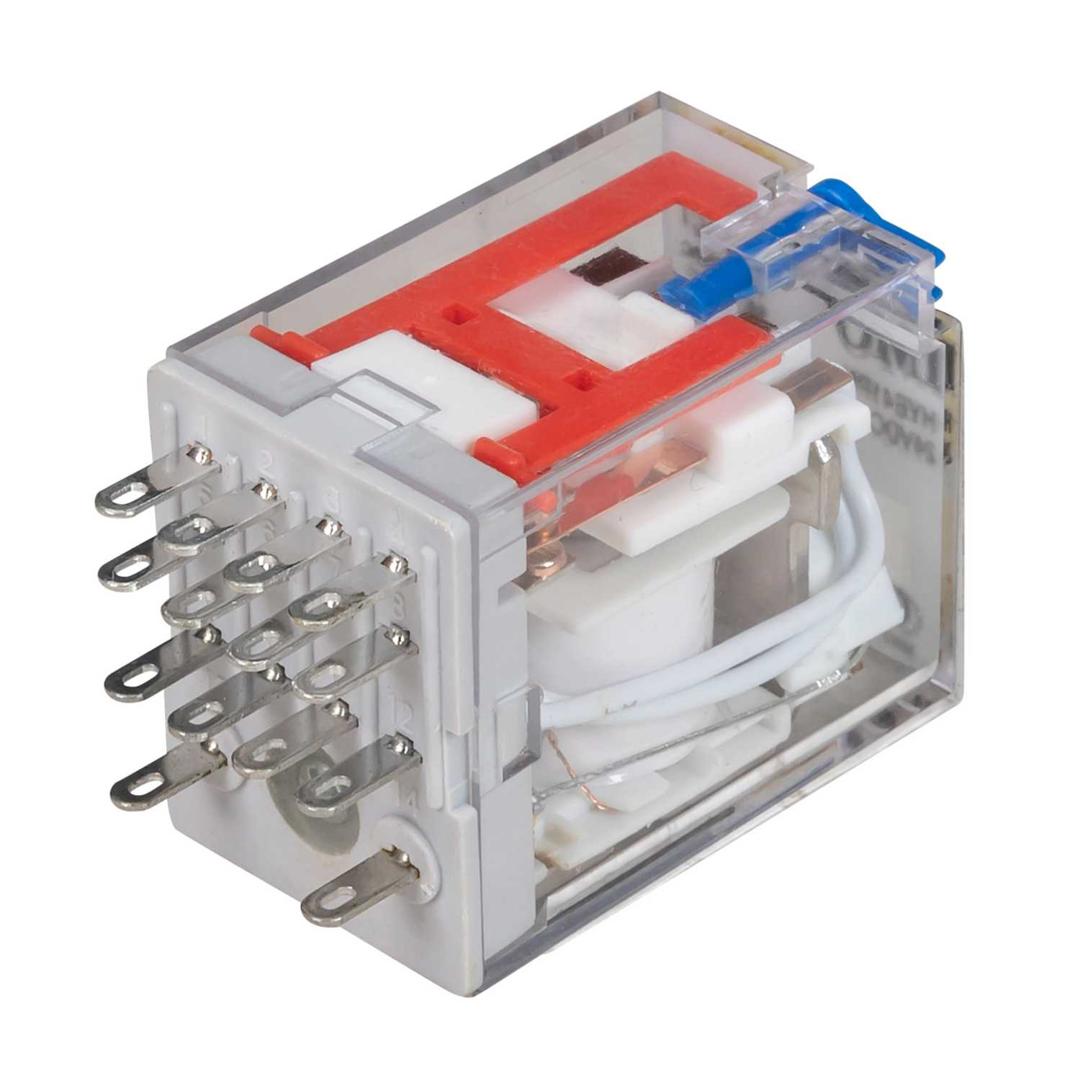

IMO 14 Pin Flat 12V DC 4 Pole 5A Changeover Plug-in Relay
Part Number: RL12C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 5A 4 pole miniature power relay
- 14 flat pins
- 24V DC coil
- Manual operator / latch, LED and flag
- Class A insulation system
- IMO model number HYE41PN24DC
- Changeover
- Yes
- Coil Voltage
- 24V DC
- Colour
- Transparent
- Contact Configuration
- 4 CO
- Current Rating
- 5A
- Depth
- 36mm
- Dimensions
- (H)28 mm x (W)21.5 mm x (D)36 mm
- Guarantee
- 1 Year
- Height
- 28mm
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Plug-In
- Number Of Pins
- 14
- Number Of Poles
- 4 Pole
- Packaging Types
- Each
- Standards
- EN 55014-1 EN 55014 -2 EN 61000-3-2 EN 61000-3-3
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 250V AC 30V DC
- Weight
- 0.034kg
- Width
- 21.5mm
