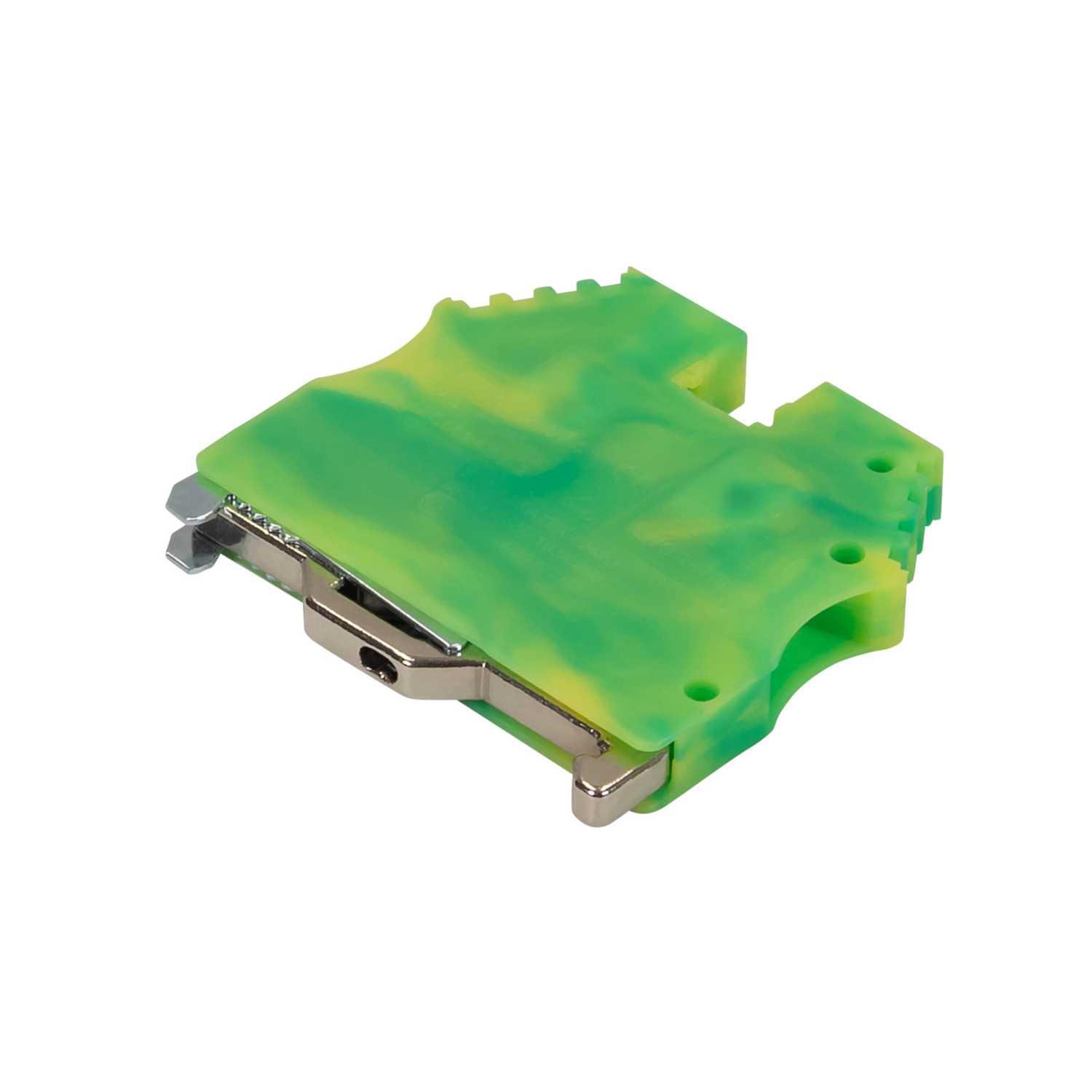

IMO 4mm Earth DIN Rail Terminal Block Green/Yellow 5 Pack
Part Number: TB09C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Screw clamp earth terminal
- For mounting on 35mm DIN rail (top hat rail)
- Connection to the base of the block in order to ground/earth the circuit
- Green/yellow colours comply with international standards
- Screw clamp system is constructed to protect loosening providing excellent vibration resistance
- Certified for flammability rating V2 according to UL 94
- Box of 5 x ERPE4P terminals with markers
- Colour
- Green/Yellow
- Depth
- 41mm
- Dimensions
- (H)42 mm x (W)6.0 mm x (D)41 mm
- Guarantee
- 1 Year
- Height
- 42mm
- Material
- Thermoplastic PA66
- Mounting
- Top Hat DIN Rail
- Packaging Types
- Each
- Size
- 2.5-4.0mm²
- Standards
- EN 60947-7-1 EN 60947-7-2 EN 60947-7-3 EN IEC 63000
- Unspsc V18
- 39121410
- Unspsc V24
- 39121410
- Voltage Rating
- 300V
- Weight
- 0.082kg
- Width
- 6.0mm
