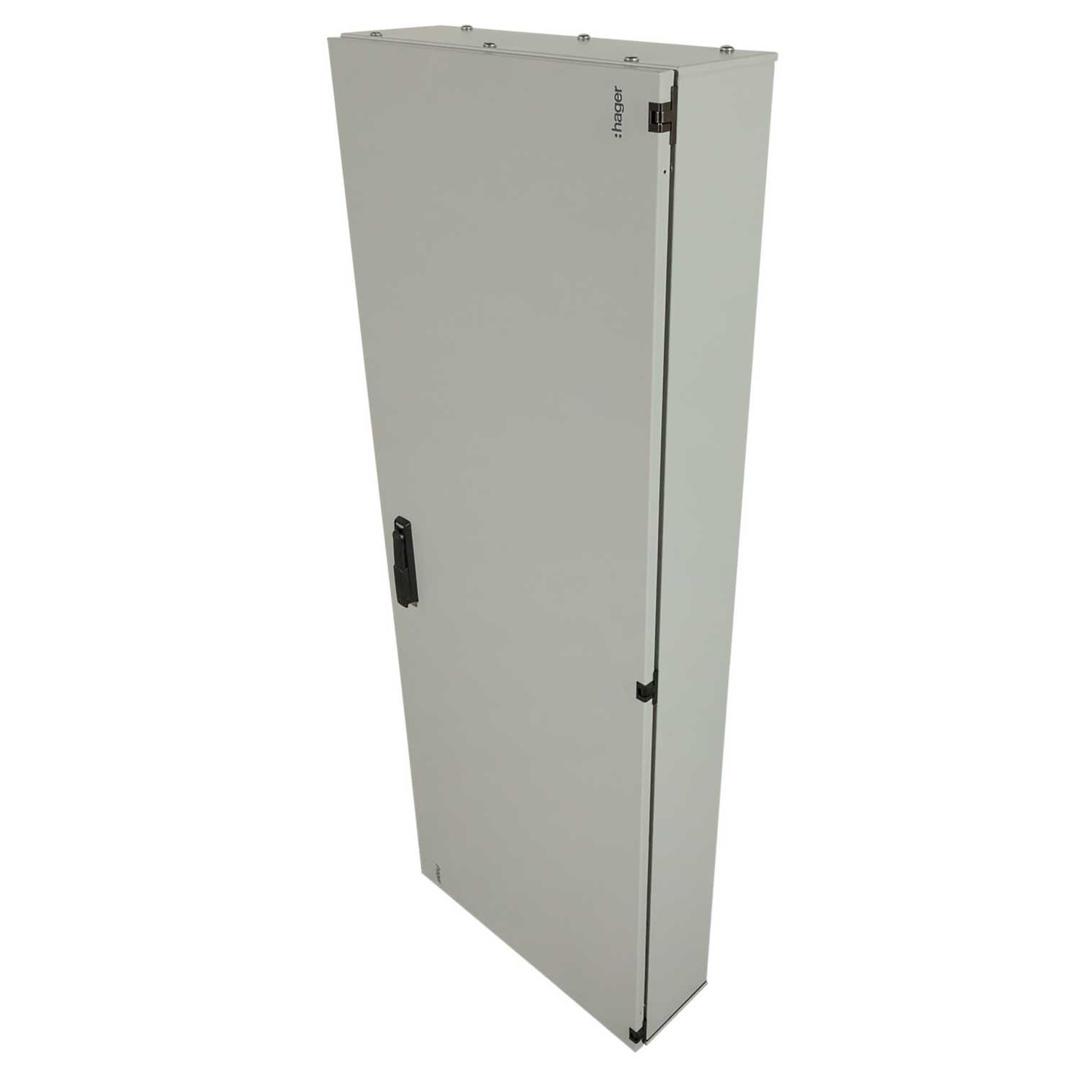

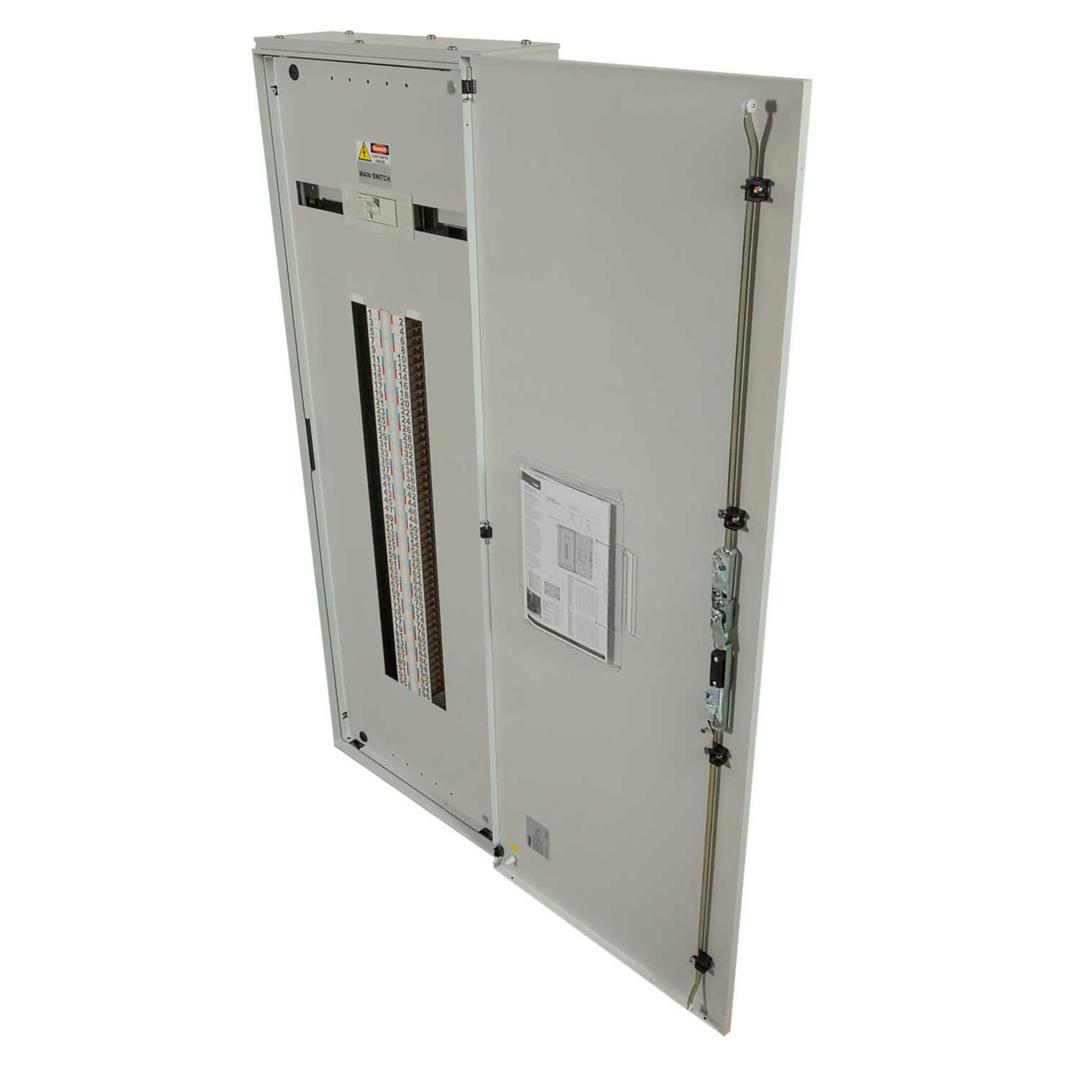

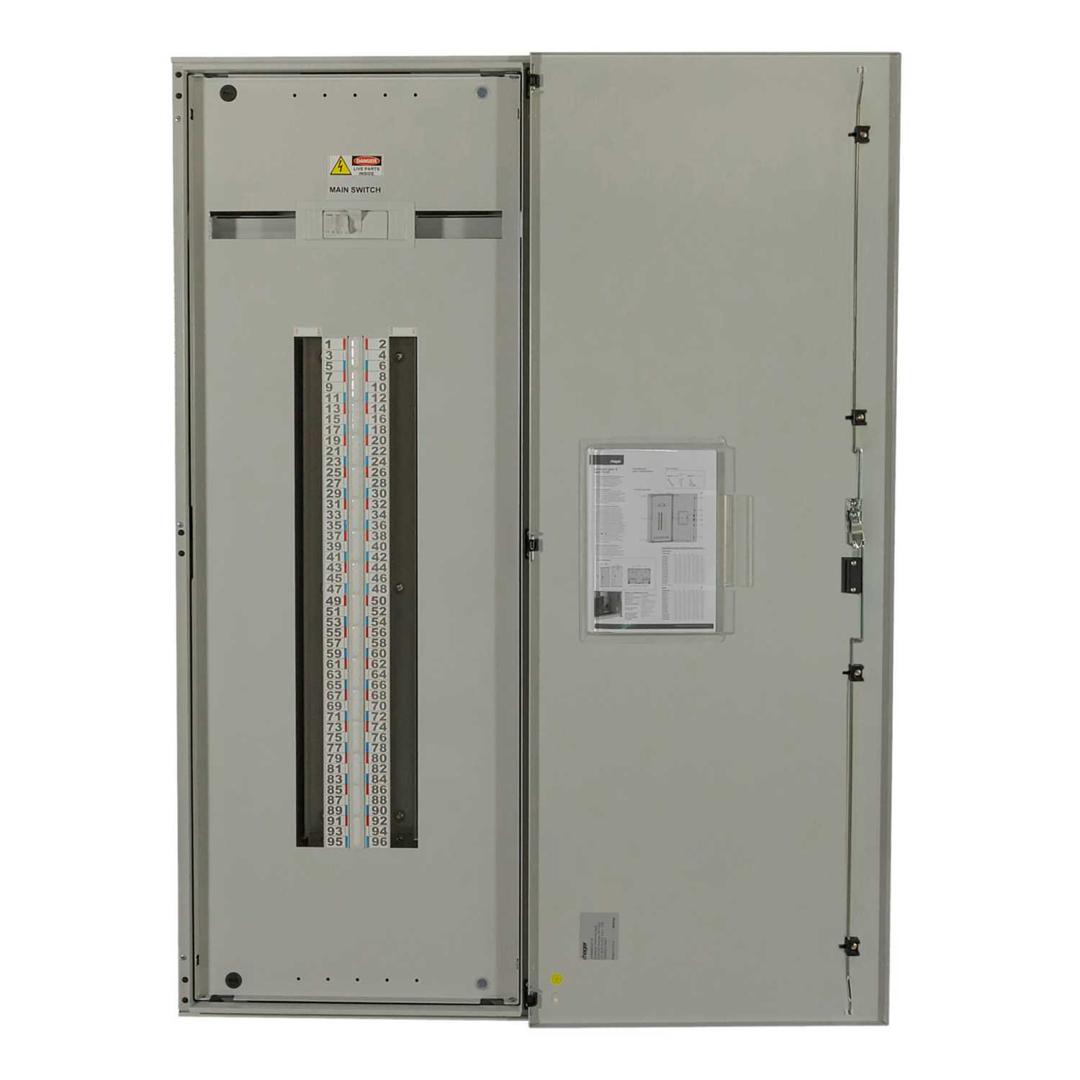

Hager performa apex 96 Way 250A Main Switch Panelboard Grey
Part Number: JPA9600S25TW
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 phase metal distribution board constructed from 1.6mm galvanised steel, polyester powder coated
- 250A isolator main switch
- 250A rated busbar
- Type tested chassis
- 2 x 8 pole DIN space each side of main incomer
- Hinged, removable and reversible door and escutcheon
- Galvanised steel gland plates as standard
- Split neutral and earth links with bridged neutrals
- IP43 rated
- Busbar Rating
- 250A
- Colour
- Light Grey
- Current Rating
- 250A
- Depth
- 200mm
- Dimensions
- (H)1600 mm x (W)600 mm x (D)200 mm
- Door Type
- Hinged / Reversible
- Finish
- Powder Coated
- Guarantee
- 2 Years
- Height
- 1600mm
- IP Rating
- IP43
- Ik Rating
- IK05
- Lockable
- Yes
- Material
- Galvanised Steel
- Mounting
- Surface
- Number Of Outgoing Ways Upto63 A
- 32
- Packaging Types
- Each
- Product Range
- performa apex
- Type
- Distribution Board
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 415V AC
- Weight
- 63kg
- Width
- 600mm
