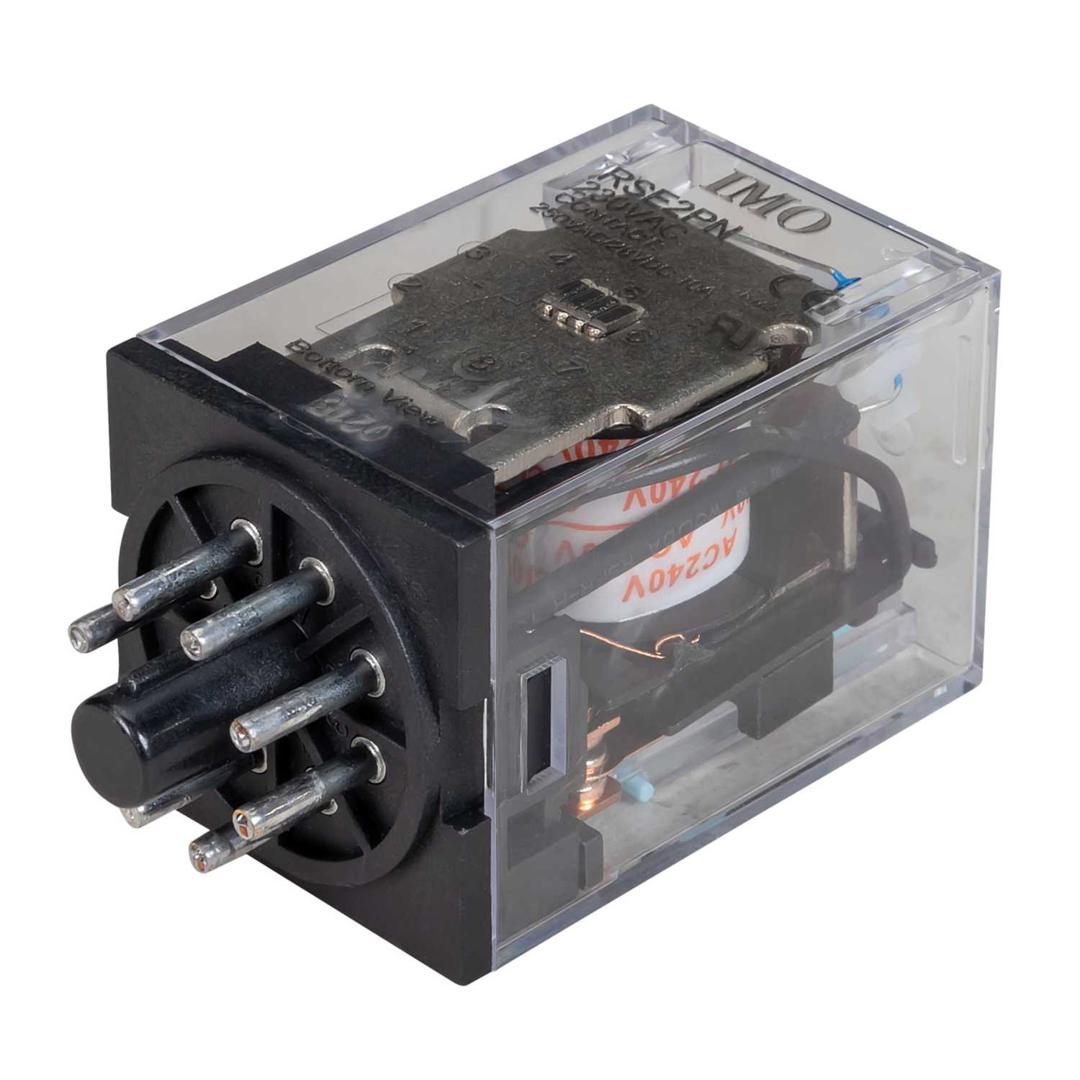

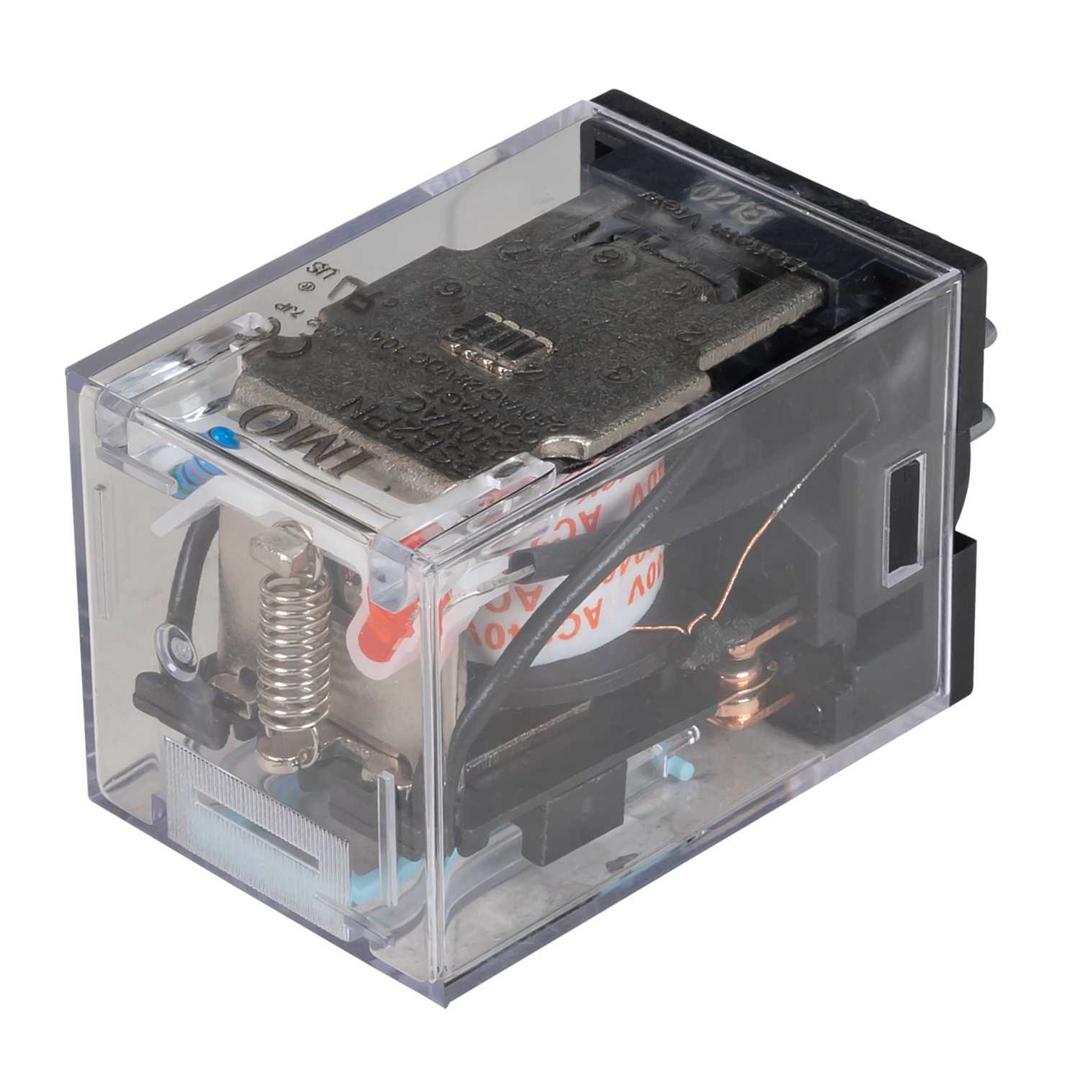

IMO 8 Pin 230V AC 10A 2 Pole Changeover Plug-in Relay
Part Number: RL01C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 10A 2 pole miniature power relay
- 8 round pins
- 230V AC coil
- Manual operator / latch, LED and flag
- Class A insulation system
- IMO model number RSE2PN230AC
- Changeover
- Yes
- Coil Voltage
- 230V AC
- Colour
- Transparent
- Contact Configuration
- 2 CO
- Current Rating
- 10A
- Depth
- 53mm
- Dimensions
- (H)35 mm x (W)35 mm x (D)53 mm
- Guarantee
- 1 Year
- Height
- 35mm
- Maximum Operating Temperature
- 55°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Plug-In
- Number Of Pins
- 8
- Number Of Poles
- 2 Pole
- Packaging Types
- Each
- Standards
- EN 55014-1 EN 55014 -2 EN 61000-3-2 EN 61000-3-3
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 250V AC 30V DC
- Weight
- 0.075kg
- Width
- 35mm
