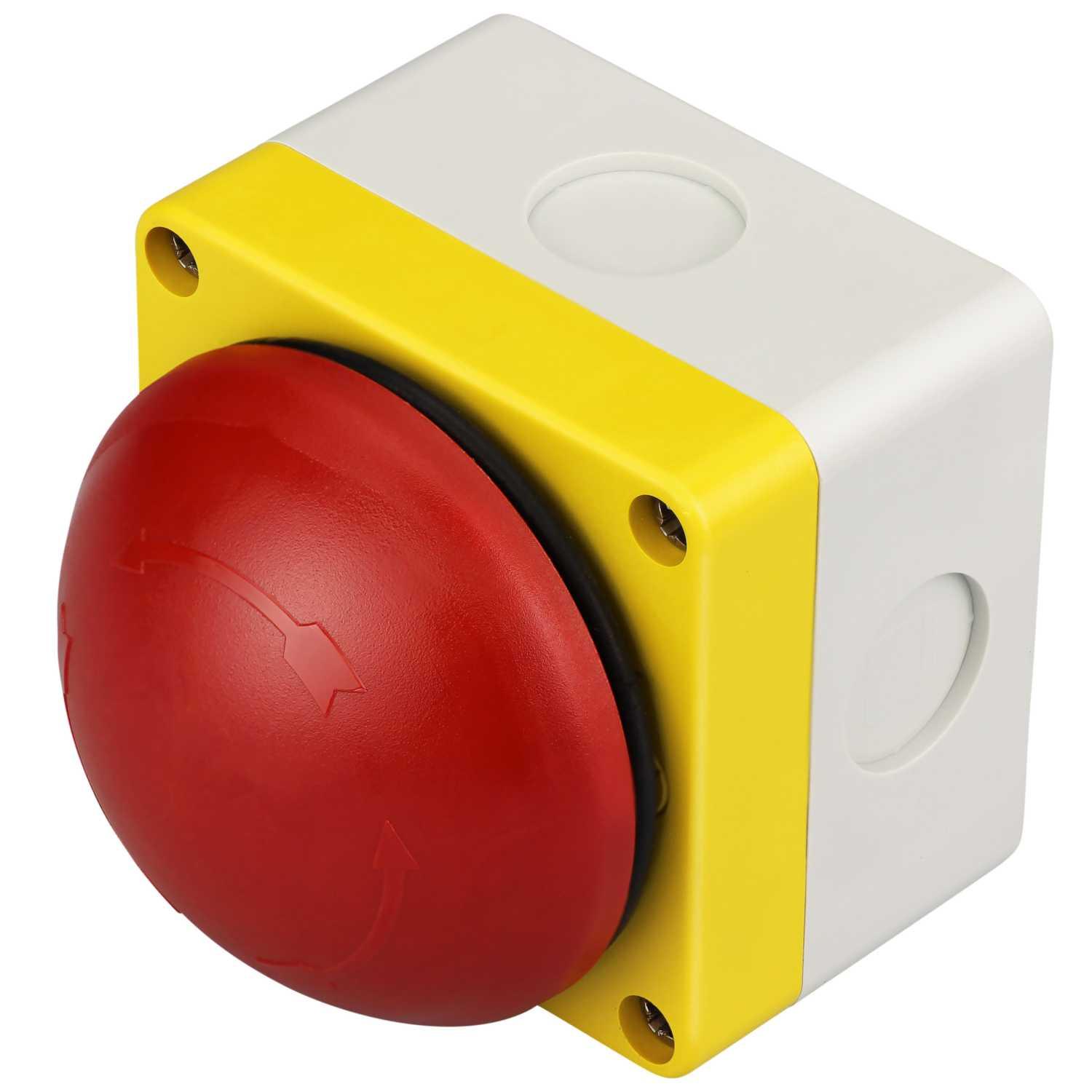

IMO 70mm Twist to Release Foot or Palm Emergency Stop Station
Part Number: PB17C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Complete emergency stop station with 2NC contacts
- 70mm red pushbutton
- Designed for quick foot or palm operation
- 10A AC12 230VAC
- Flame retardant material construction
- IMO model number BG10P34P-02
- Colour
- Yellow/Red/Grey
- Contact Configuration
- 2 NC
- Cut Out
- 22.5mm
- Depth
- 81mm
- Dimensions
- (H)70 mm x (W)75 mm x (D)81 mm
- Guarantee
- 1 Year
- Head Type
- Palm
- Height
- 70mm
- Ip Rating
- IP67
- Material
- Plastic
- Maximum Operating Temperature
- 50°C
- Minimum Operating Temperature
- -20°C
- Mounting
- Surface
- Operation Type
- Twist Release
- Packaging Types
- Each
- Product Range
- Emergency Stop Pushbuttons
- Standards
- EN 60947-5-1
- Type
- Emergency Stop Station
- Unspsc V18
- 39121565
- Unspsc V24
- 39121565
- Voltage Rating
- 230V AC
- Weight
- 0.2kg
- Width
- 75mm
