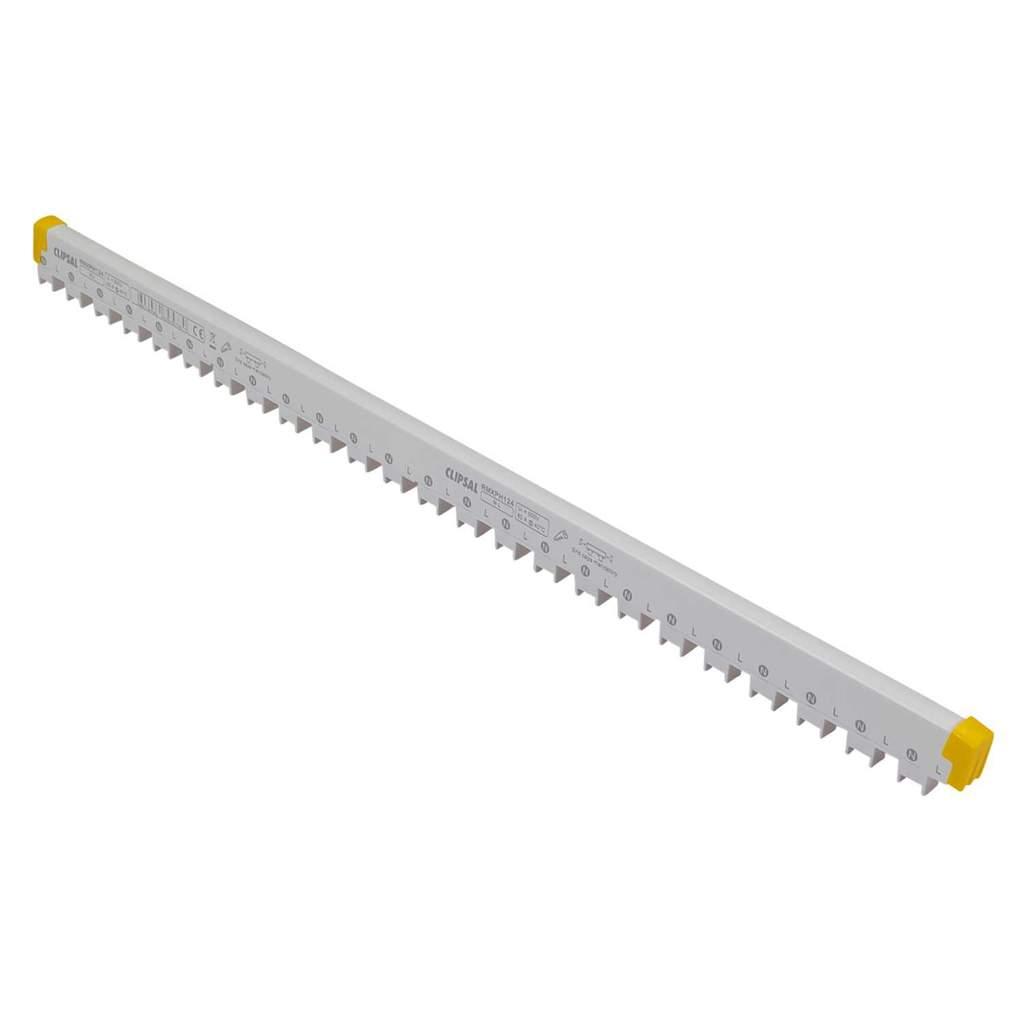

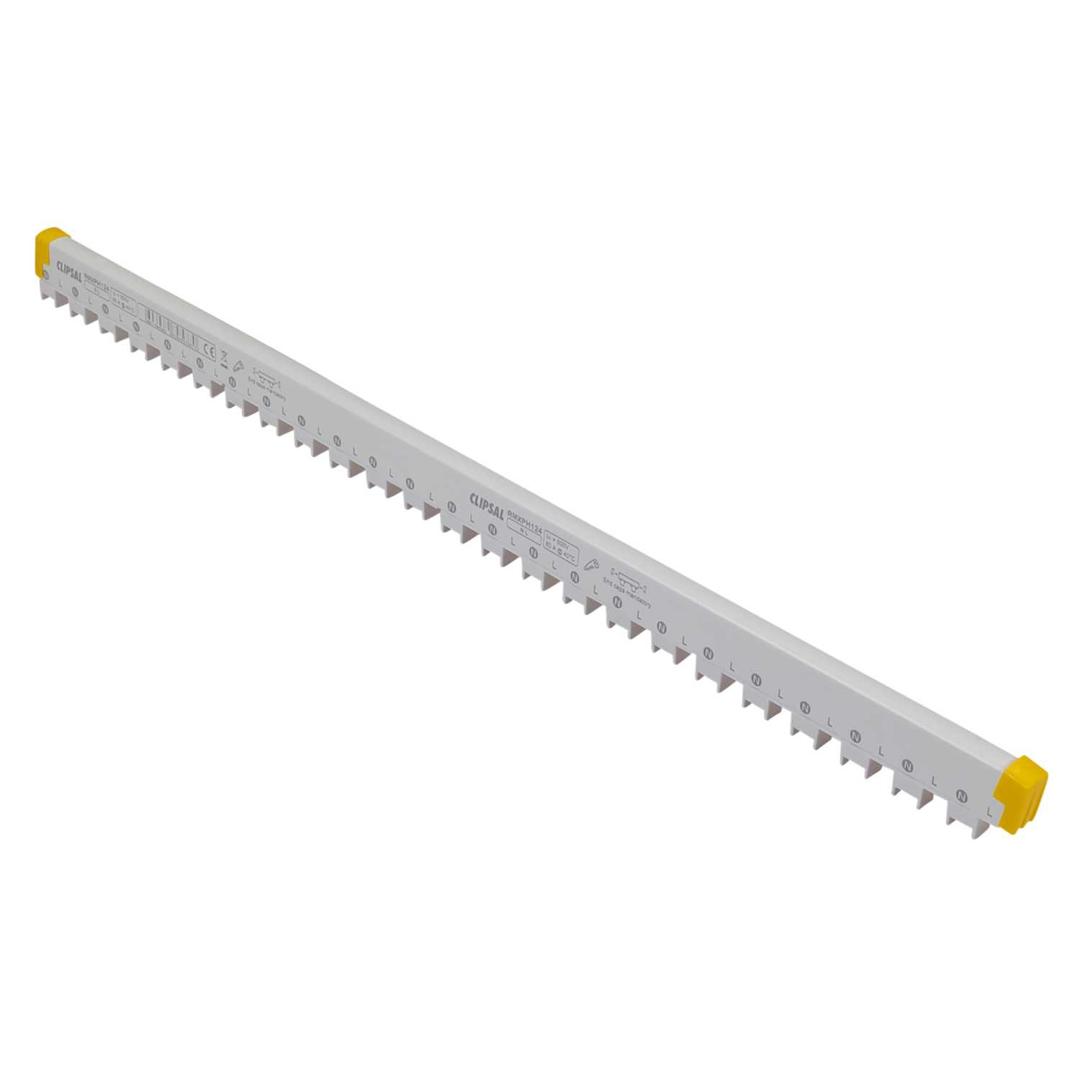

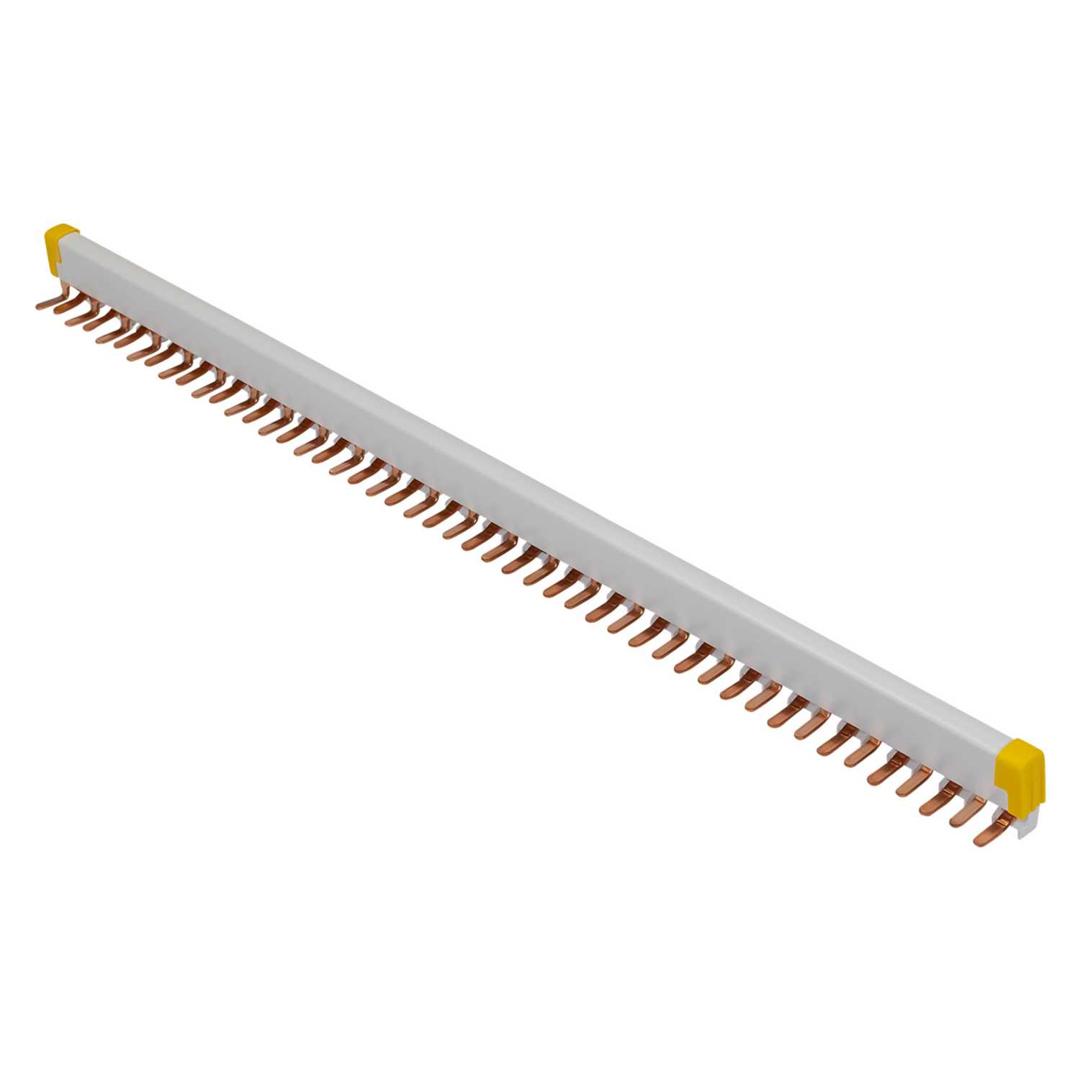

Clipsal 80A 24 Module 1 Pole and Neutral Resi MAX SLIM Comb Busbar
Part Number: RMXPH124
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Single phase and neutral insulated comb busbar for installation in Resi MAX load centres
- Allows a quicker install with no cables feeding the protective devices
- SLIM comb busbar is optimised for the SLIM RCBO
- Can be cut to desired number of modules and insulated with supplied end caps
- Colour
- White
- Current Rating
- 80A
- Dimensions
- (L)432 mm
- Guarantee
- 1 Year
- Insulated
- Yes
- Length
- 432mm
- Material
- Plastic, Copper
- Number Of Poles
- 1P+N
- Number Of Ways
- 24
- Packaging Types
- Each
- Product Range
- Resi MAX
- Standards
- IEC 61439-1 IEC 60947-7-1 IEC 60695-2-1
- Type
- Busbar
- Unspsc V18
- 39121117
- Unspsc V24
- 39121117
- Voltage Rating
- 230V AC
- Weight
- 0.205kg
