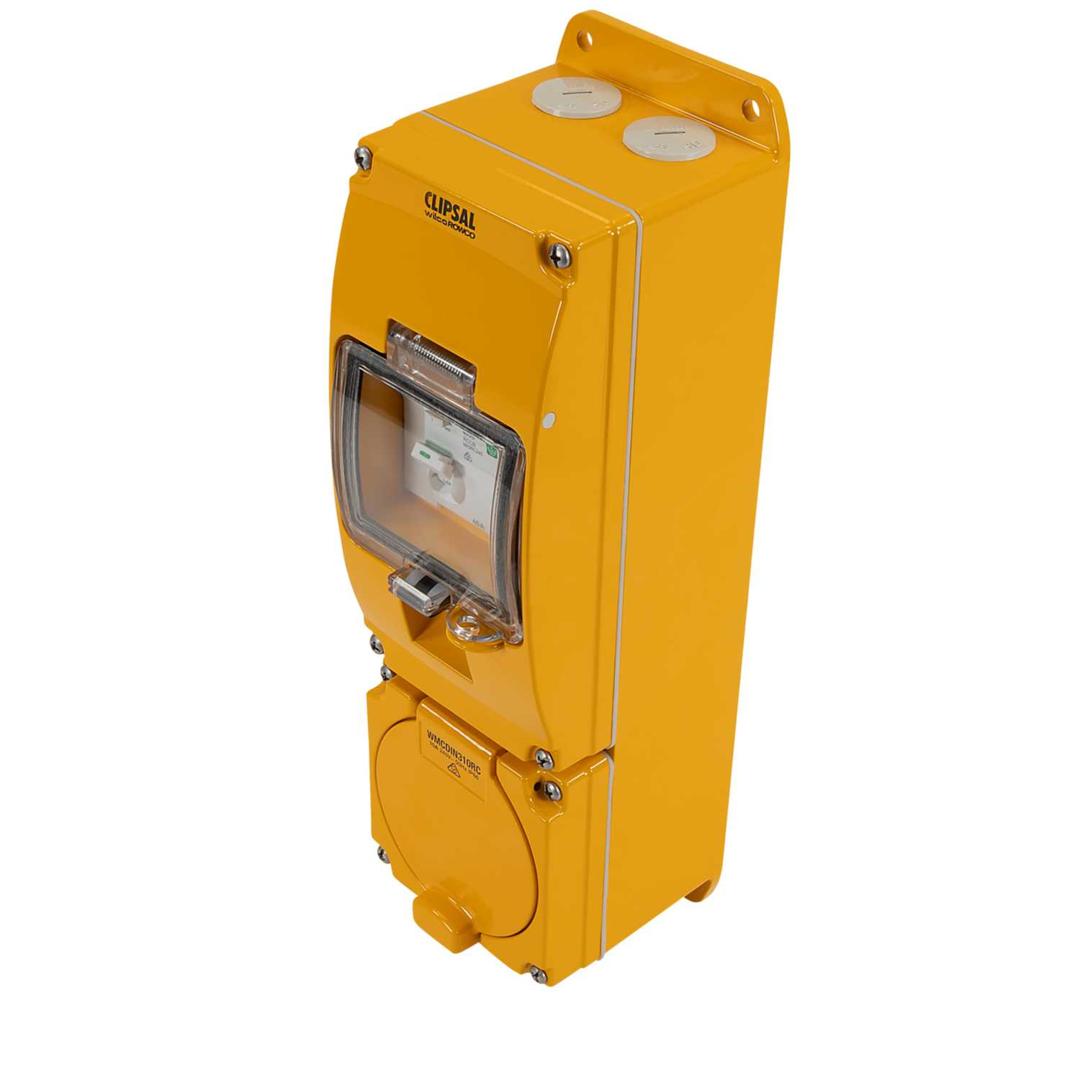

Clipsal 10A 3 Flat Pins 250V AC Metal Clad RCD Protected Socket Outlet IP66 Yellow
Part Number: WMCDIN310RC
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Surface mount weatherproof socket outlet with 3 flat pins
- 30mA RCD protected
- Single phase, neutral and earth
- Heavy duty cast aluminium
- Highly resistant to dust and water
- Threaded gland entries
- For use with industrial wilcoROWCO and 56 Series plugs
- Padlocking facility in transparent RCD flap
- Cable Capacity
- 16mm²
- Colour
- Yellow
- Current Rating
- 10A
- Depth
- 117mm
- Dimensions
- (H)341 mm x (W)99 mm x (D)117 mm
- Finish
- Powder Coated
- Guarantee
- 1 Year
- Height
- 341mm
- Ip Rating
- IP66
- Material
- Cast Aluminium
- Mounting
- Surface
- Number Of Poles
- 1P+N+E
- Packaging Types
- Each
- Product Range
- wilcoROWCO
- Rcd Fitted
- Yes
- Rcd Rating
- 30mA
- Standards
- AS/NZS 3123
- Terminal Type
- Screw
- Type
- Industrial Socket
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 240V AC
- Weight
- 2.466kg
- Width
- 99mm
