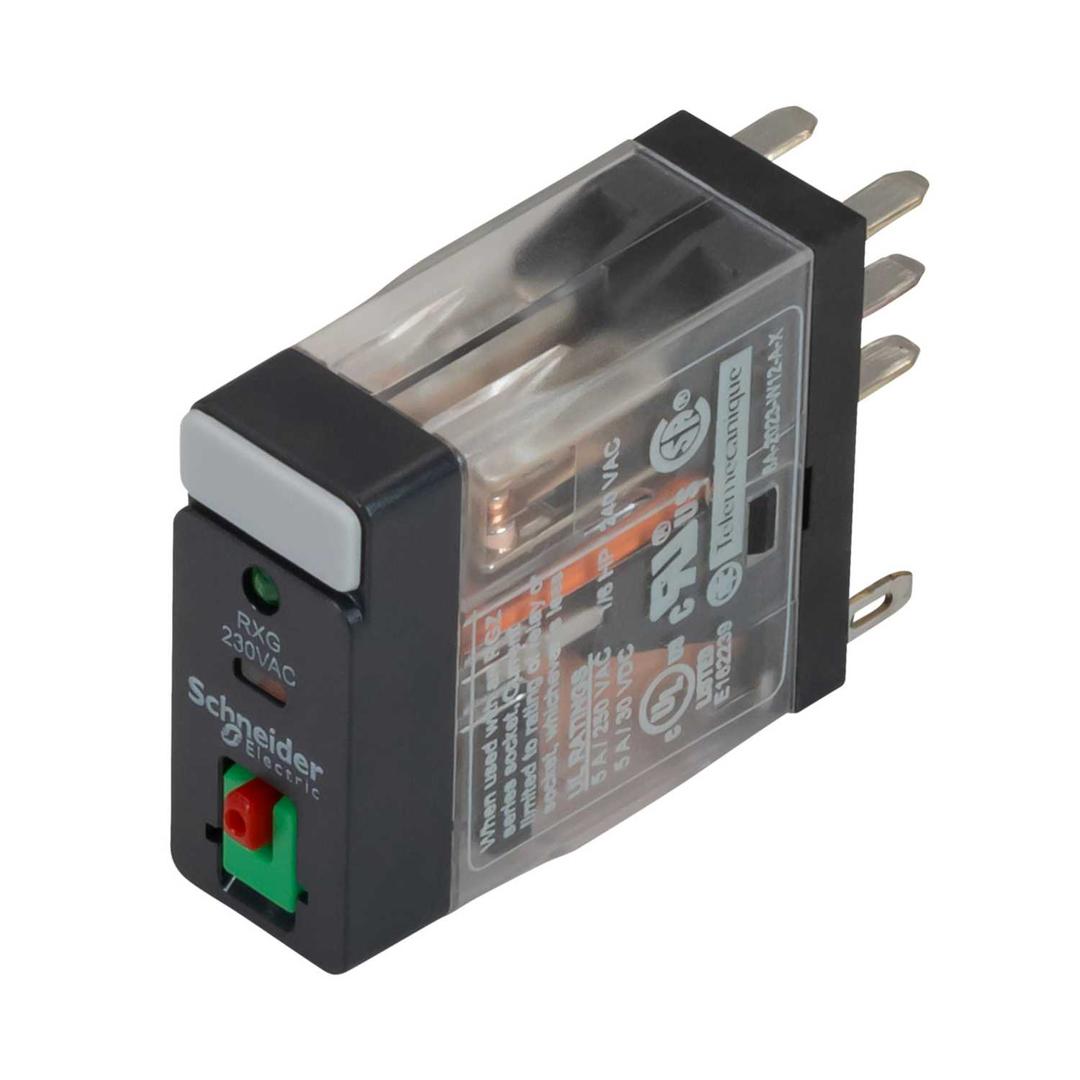

Schneider Harmony 2CO 230V AC 5A Interface Electromechanical Relay with LED
Part Number: RXG22P7
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- RXG22P7 plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A
- It has large choice of number of contacts for high rated current use
- Offers a lockable test button and LED indicator

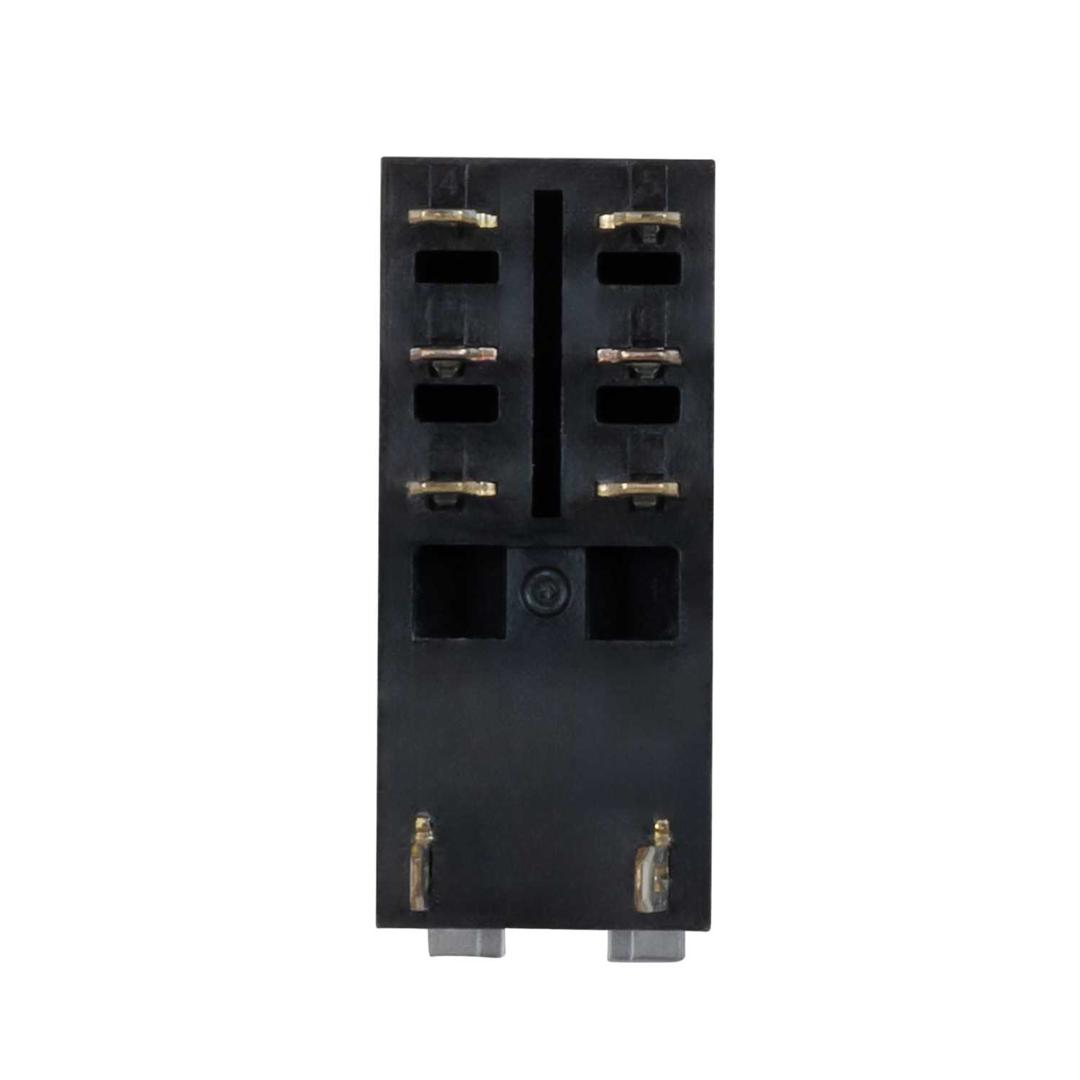

- Faston pin terminal mounts quickly and securely
- Can mount nearly everywhere due to its 16mm width
- Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)
- Status display with LED, clearly signal both in the day and night
- Changeover
- Yes
- Colour
- Dark Grey
- Contact Configuration
- 2 CO
- Current Rating
- 5A
- Dimensions
- (H)36.5 mm x (W)16 mm
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Height
- 36.5mm
- Indication Lamp
- Yes
- Ip Rating
- IP40
- Material
- Plastic
- Mounting
- Base Mount
- Packaging Types
- Each
- Product Range
- Harmony
- Standards
- IEC 61810-1
- Type
- Control Relay
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 230V AC
- Weight
- 0.02kg
- Width
- 16mm
