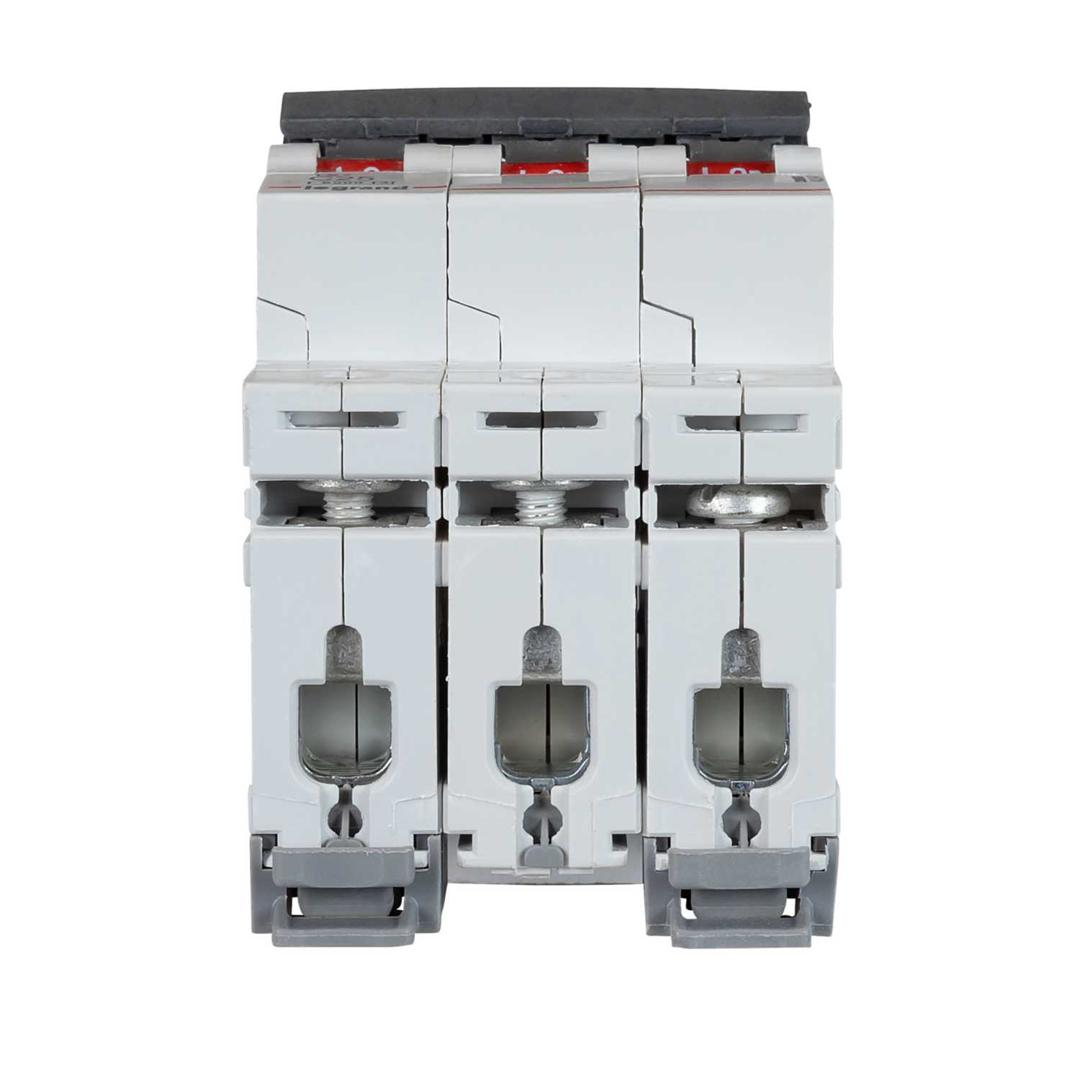

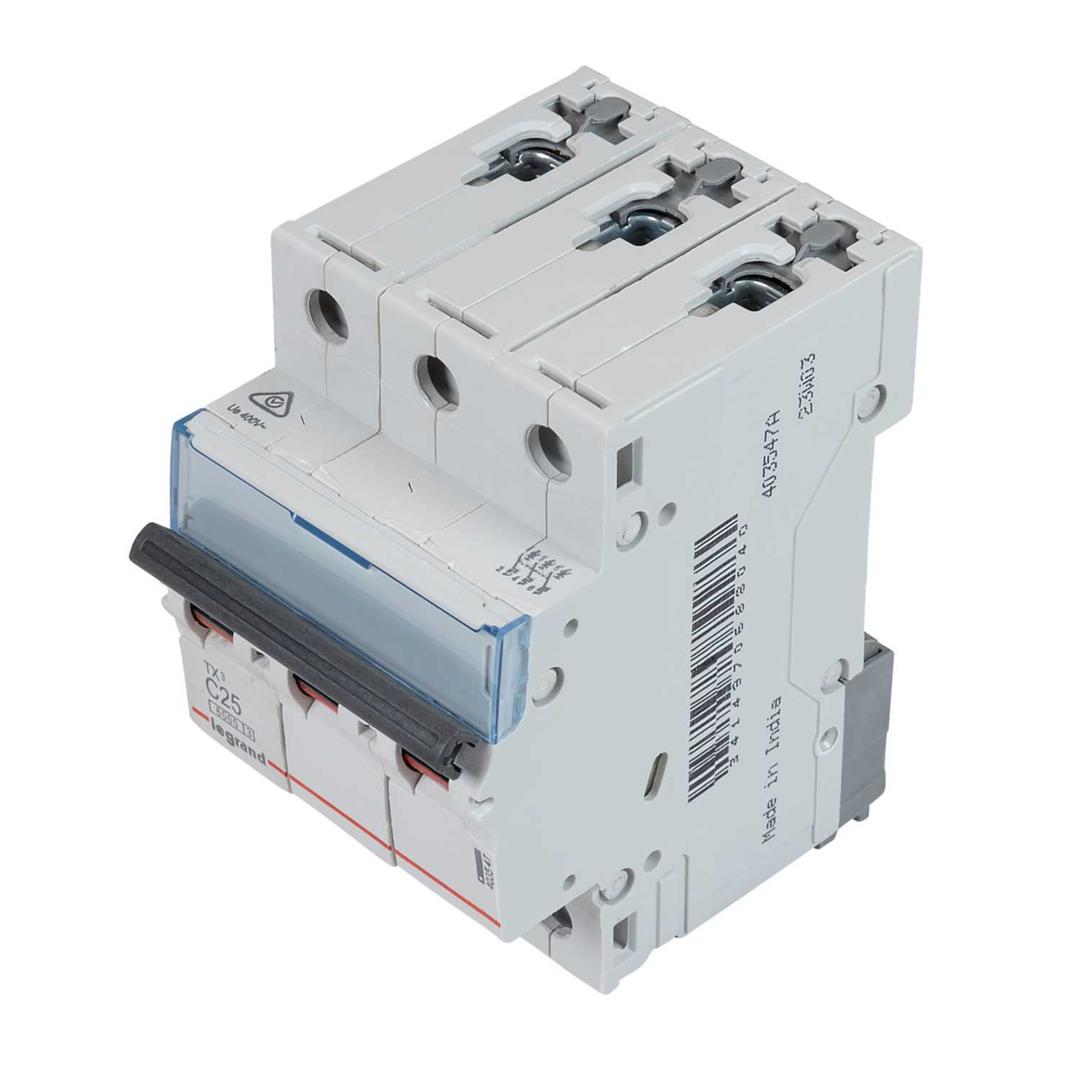

Legrand 25A 3 Pole 6kA C Curve TX³ MCB
Part Number: 403547
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 phase miniature circuit breaker
- Thermal-magnetic tripping for overload and short circuit protection
- Positive contact indication
- Line or load cables can be connected either at the top or the bottom
- The location of the terminals allows supplying by pin busbar both sides and fork busbar lower side
- Provision for padlocking
- 2.5 N m tightening torque on connections
- Colour
- White
- Current Rating
- 25A
- Depth
- 77.8mm
- Dimensions
- (H)89 mm x (W)53.1 mm x (D)77.8 mm
- Guarantee
- 1 Year
- Height
- 89mm
- Incoming Terminal Capacity
- 25mm²
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 3
- Number Of Poles
- 3 Pole
- Outgoing Terminal Capacity
- 25mm²
- Packaging Types
- Each
- Product Range
- TX3
- Short Circuit Rating
- 6kA
- Standards
- IEC/EN 60898-1 IEC 60947-2
- Tripping Characteristics
- C Curve
- Type
- Miniature Circuit Breaker
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 415V AC
- Weight
- 0.399kg
- Width
- 53.1mm
