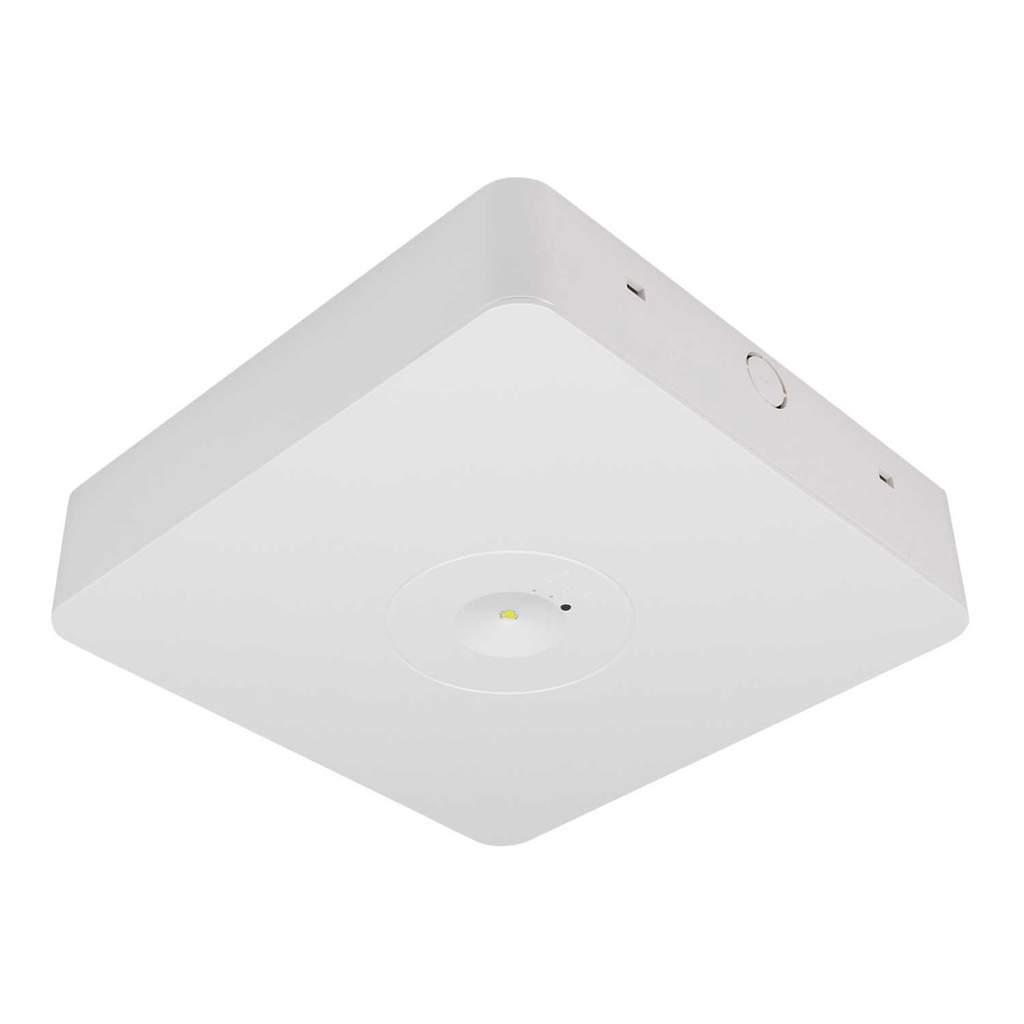

Ektor Ledfire Professional Surface Mounted Emergency Luminaire IP65 White
Part Number: 01689
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Non-maintained operation with D80 classification
- Soft-start charger to reduce building load
- Lowest energy consumption (avg. <lt/>0.25W)
- Selectable discharge rating for hazardous areas
- Fast emergency switch-over (<lt/>0.5s) for high-task areas
- Long life electronics
- 12 years design life at max. ambient
- High quality lithium battery (LiFePO4) and smart charger
- Standalone (SPU)
- Self test (AS2293/ IEC62034)
- DALI (IEC62386)
- Ektor wired monitored system compatible
- Ambient Temperature
- 0-40°C
- Class Type
- Class 2
- Colour
- White
- Depth
- 53mm
- Dimensions
- (L)230 mm x (W)230 mm x (D)53 mm
- Emergency Duration
- 90 Mins
- Emergency Type
- Non-Maintained
- Guarantee
- 8 Years
- Ip Rating
- IP20
- Length
- 230mm
- Lumens Output
- 370lm
- Material
- Polycarbonate
- Mounting
- Surface
- Packaging Types
- Each
- Power Rating
- 3W
- Product Range
- Ledfire
- Shape
- Square
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3
- Type
- Emergency Luminaire
- Unspsc V18
- 39111709
- Unspsc V24
- 39111709
- Voltage Rating
- 230V AC
- Weight
- 0.917kg
- Width
- 230mm
