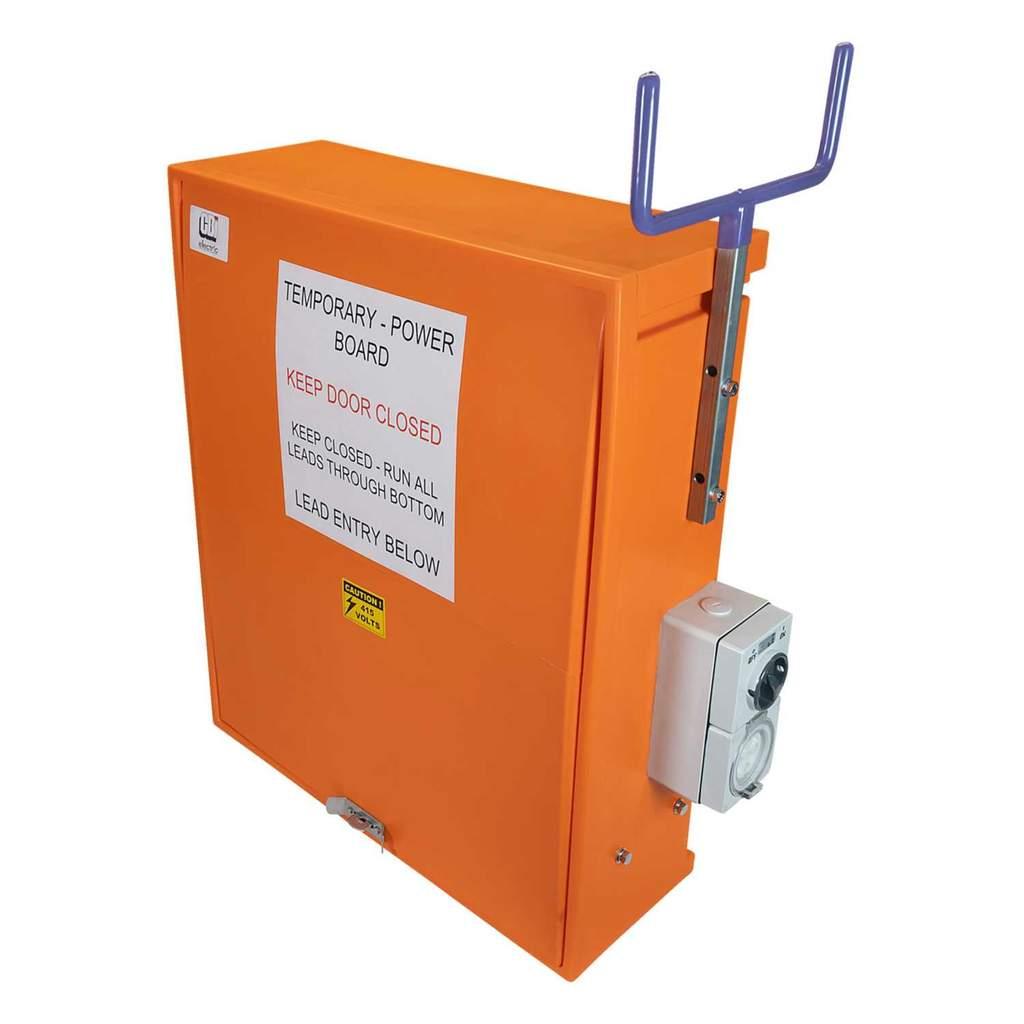

CBi-electric Three Phase Polyethylene Temporary Power Board Orange
Part Number: POLYTEMP03
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Complies with AS/NZS3012
- 1 X 250amp 3P main isolator
- 7 X 10amp single phase GPO's
- 1 X 15amp single phase GPO
- 2 X 10amp lighting test points
- 1 X 32amp 3 phase socket outlet (IP56)
- 1 X loop isolator to connect additional board
- Double pole auto switching GPO's with unique shutter protection
- Height adjustment cable hook
- Polyethylene construction
- RCD protection for all single and 3 phase outlets
- Bottom entry for leads
- Lockable section for RCD's and C/B's
- Highly visible orange colour UV protected
- IP43 construction
- Drop tested from 3 metres with no damage
- Colour
- Orange
- Compliance
- AS/NZS3012
- Current Rating
- 250A
- Depth
- 230mm
- Dimensions
- (H)750 mm x (W)625 mm x (D)230 mm
- Finish
- Matt Finish
- Guarantee
- 1 Year
- Height
- 750mm
- Material
- Polyethylene
- Packaging Types
- Each
- Product Range
- Polytemp
- Suitable For
- Temp Site Application
- Supplied With
- 1 X 250Amp 3P Main Isolator 2 X 10Amp Lighting Test Points 7 X 10Amp Single Phase GPO's 1 X 15Amp Single Phase GPO 1 X 32Amp 3 Phase Socket Outlet (IP56) Height Adjustment Cable Hook
- Type
- Temporary Power Board
- Unspsc V18
- 39121303
- Unspsc V24
- 39121303
- Voltage Rating
- 415V AC
- Width
- 625mm
- With Socket
- Yes
