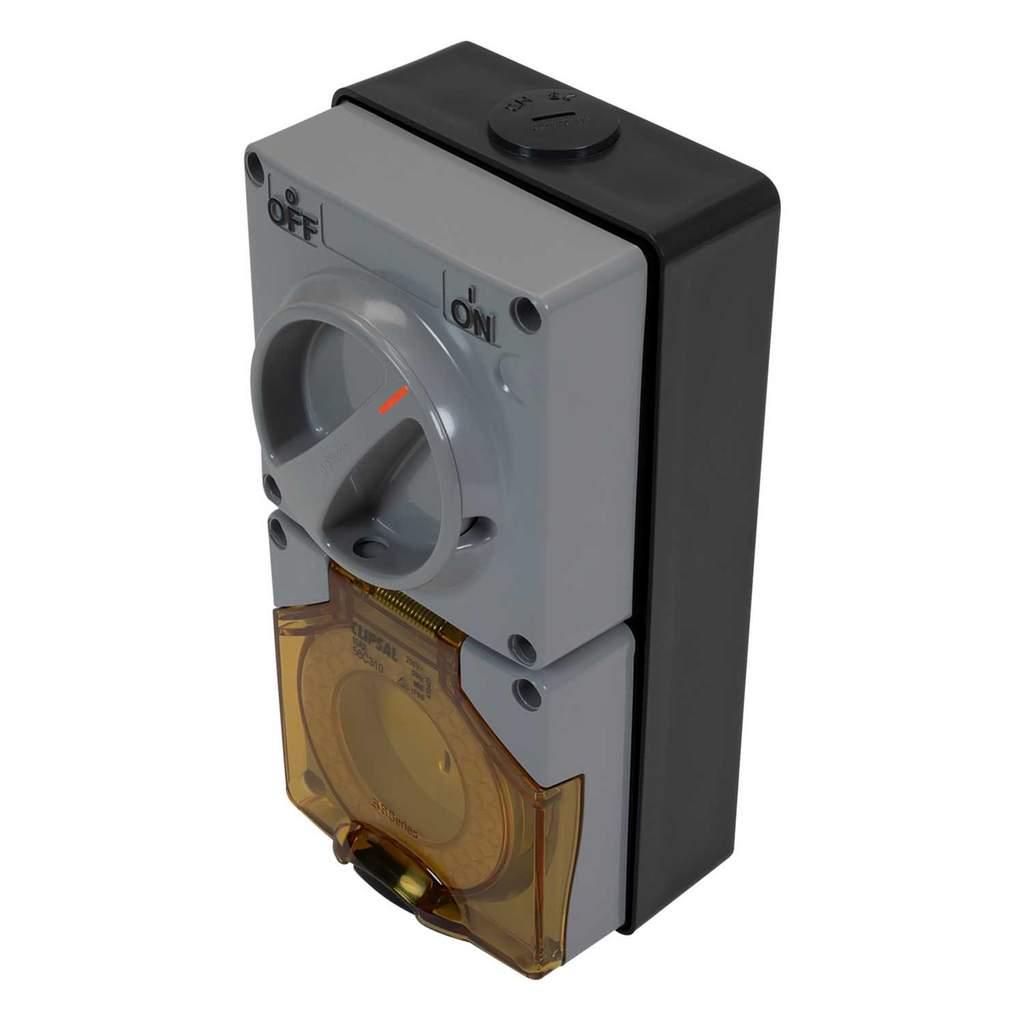

Clipsal 10A 3 Flat Pins 250V AC Switched Socket Outlet 56 Series IP66 Chemical Grey
Part Number: 56C310-CG
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Surface mount weatherproof GPO
- Single phase, neutral and earth
- Hoseproof and dust resistant flap with automatic snap catch latch
- Threaded gland entries
- Provision for padlock
- For use with industrial IP66 rated plug tops
- Cable Capacity
- 6.0mm²
- Colour
- Grey
- Compliance
- IP66 Conforming to AS 60529
- Current Rating
- 10A
- Depth
- 83mm
- Dimensions
- (H)204 mm x (W)101 mm x (D)83 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 204mm
- Ip Rating
- IP66
- Material
- ABS
- Mounting
- Surface
- Number Of Poles
- 1P+N+E
- Packaging Types
- Each
- Product Range
- 56 Series
- Standards
- AS/NZS 3123 AS/NZS 3133
- Suitable For
- Indoor or Outdoor Use
- Type
- Industrial Socket
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 250V AC
- Weight
- 0.729kg
- Width
- 101mm
