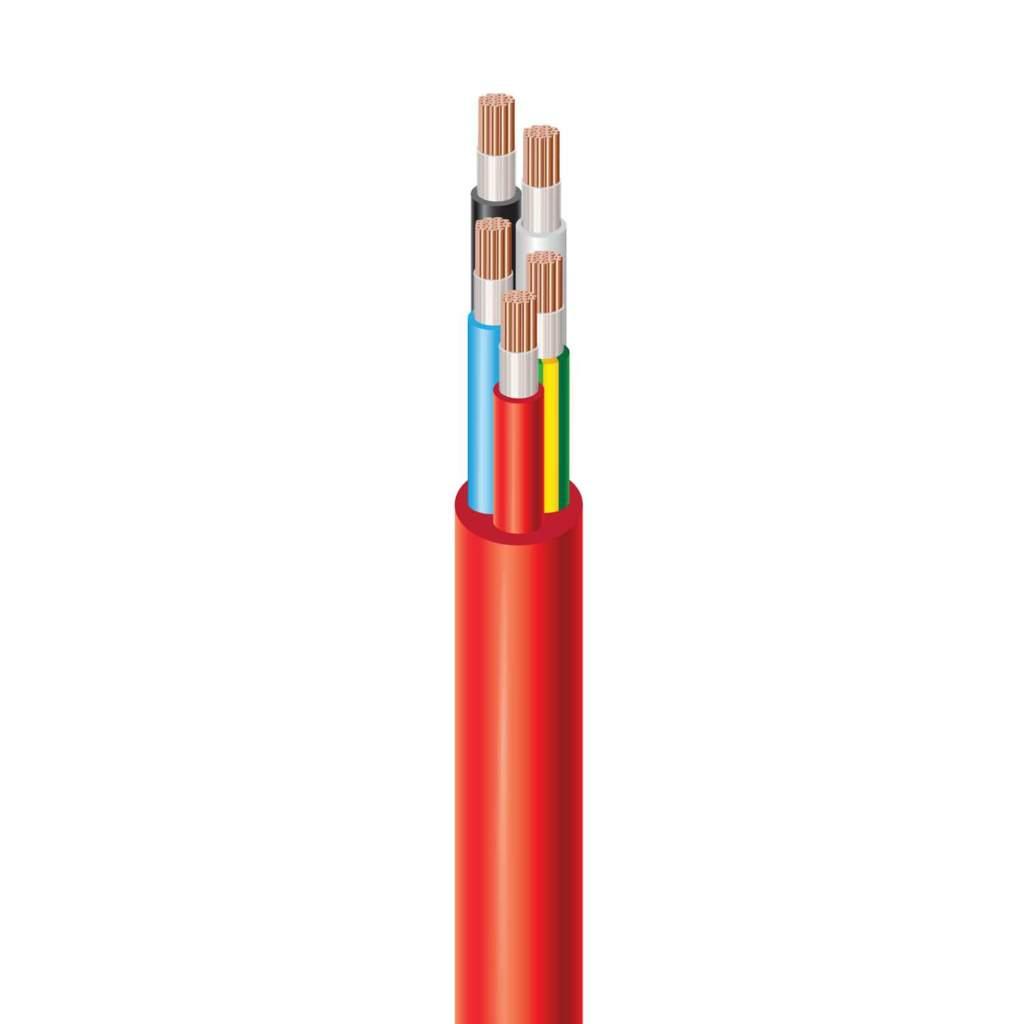

Electra 4.0mm² 4 Core and Earth Flexible Fire Rated 110° Red (100m Drum)
Part Number: FRC4040E-RED
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Flame retardant cable for mains, submains and the fire protection industry
- Flexible low smoke, halogen free, low toxicity and non-corrosive emission
- Barrier - mica glass tape
- 2 hour fire rated
- Plain annealed copper (class 5 of IEC60228)
- Core colours - red, black, white, blue, green/yellow
- Greenstar approved
- Colour
- Red
- Conductor Class
- 5
- Conductor Size
- 4.0mm²
- Dimensions
- (L)100 m
- External Diameter
- 17mm
- Flame Retardent
- Yes
- Guarantee
- 1 Year
- Insulation Material
- X-HF-110
- Length
- 100m
- Material
- Copper
- Number Of Cores
- 4+E
- Online Search Priority
- 1
- Packaging Types
- Drum
- Product Range
- Electrafire
- Sheath
- HFS-110-TP
- Sheath Thickness
- 1.8mm
- Standards
- AS/NZS 3013:2005 - WS52W, AS/NZSIEC 60332-3 AS/NZS 1660.5.3, AS/NZS 1660.5.4 AS/NZS 1660.5.1, AS/NZS 1660.5.2 AS/NZS 5000.1, AS/NZS 3808, AS/NZS 1125
- Type
- Fire Rated Multicore
- Unspsc V18
- 26121640
- Unspsc V24
- 26121640
- Voltage Rating
- 600V 1000V
- Weight
- 0.397kg
