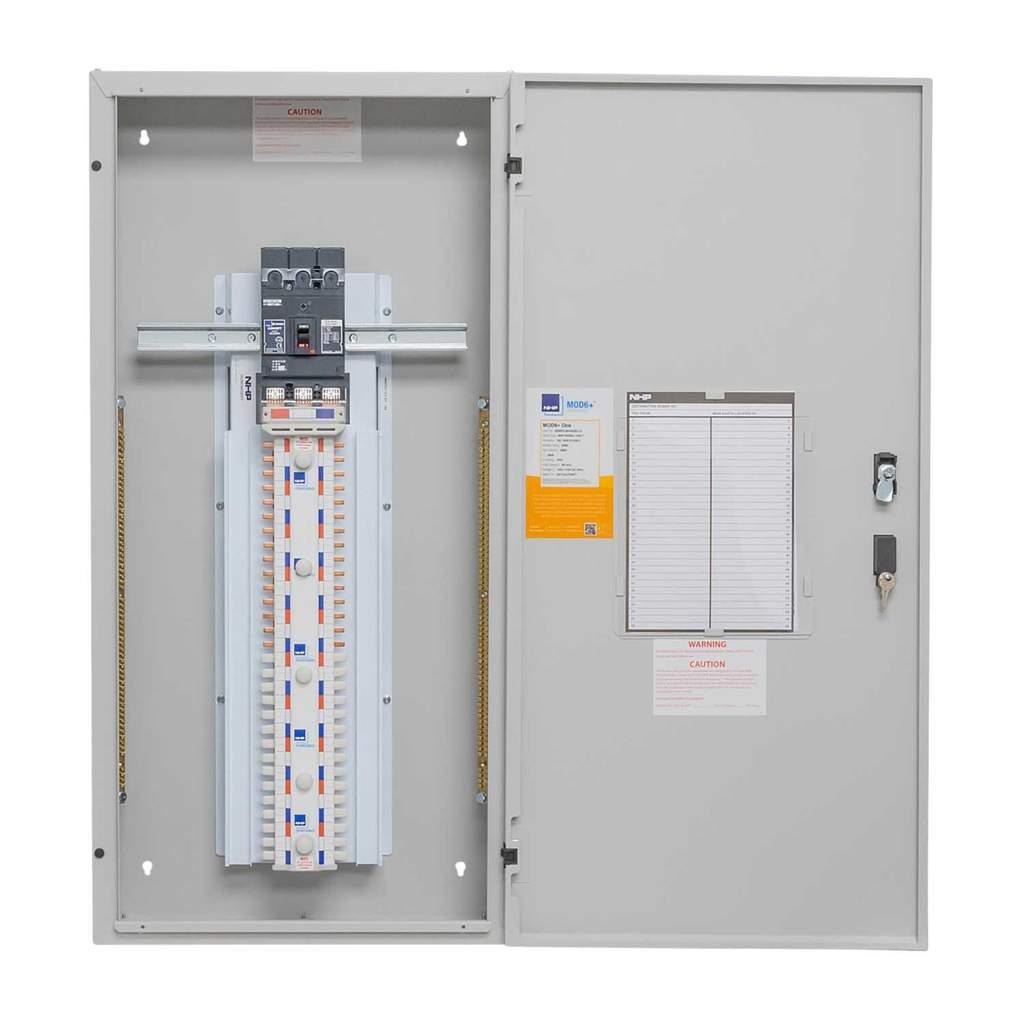

NHP 60 Way 250A Main Switch MOD6+ One Panelboard Grey
Part Number: MD6PO60M250LG
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 phase metal distribution board constructed from polyester powder coated mild steel
- 250A isolator main switch
- Encapsulated chassis suits MOD6+ MCBs and RCBOs
- 250A rated busbar
- Lift off escutcheon finished in bright white gloss
- Swing handle, semi flush to door with CL001 quarter turn key
- 16 modules of knock outs available for DIN equipment
- Busbar Rating
- 250A
- Colour
- Light Grey RAL7035
- Current Rating
- 250A
- Depth
- 153mm
- Dimensions
- (H)1080 mm x (W)530 mm x (D)153 mm
- Door Type
- Hinged
- Finish
- Powder Coated
- Guarantee
- 1 Year
- Height
- 1080mm
- Ik Rating
- IK07
- Ip Rating
- IP40
- Lockable
- Yes
- Material
- Steel
- Mounting
- Surface
- Number Of Outgoing Ways Upto63 A
- 60
- Packaging Types
- Each
- Product Range
- MOD6+ One Panelboard
- Standards
- AS/NZS 61439.3
- Type
- Distribution Board
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 415V AC
- Weight
- 30kg
- Width
- 530mm
