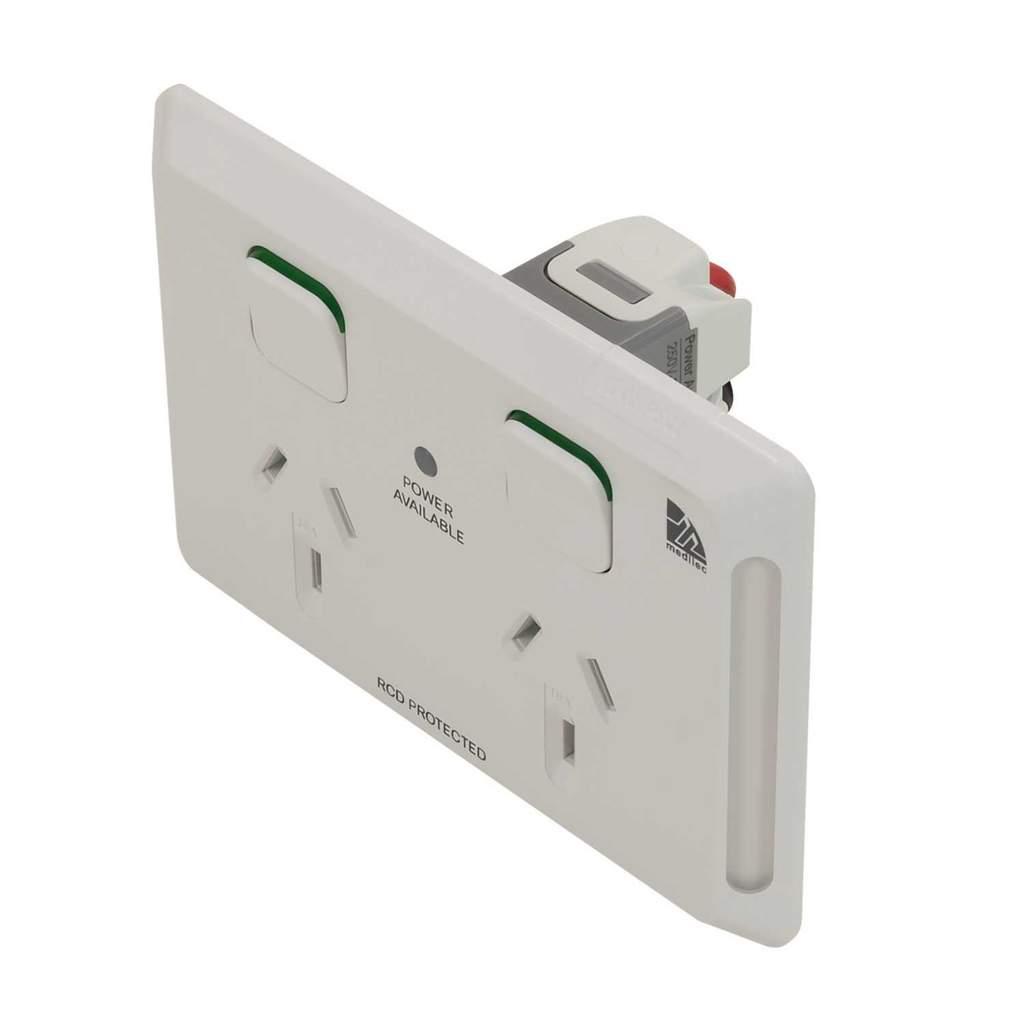

Clipsal 10A RCD Protected Double Power Point Medilec White
Part Number: MLP3025PA-WE
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Medilec switched socket is designed for medical buildings
- For use in patient areas a maximum of six twin sockets can be installed downstream of an RCD
- User touchpoints are made of antibacterial material
- product comes in electric white denoting standard power
- Amber LED indicator is marked POWER AVAILABLE to show the trip status of the RCD that is installed upstream
- Colour
- White
- Current Rating
- 10A
- Depth
- 9mm
- Dimensions
- (H)78.2 mm x (W)116 mm x (D)9 mm
- Finish
- Gloss Finish
- Fixing Centres
- 84mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 78.2mm
- Material
- Plastic
- Mounting
- Flush
- Mounting Depth
- 34.6mm
- Neon
- Yes
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Product Range
- Medilec Series
- Shape
- Rectangular
- Standards
- AS/NZS 3112 AS/NZS 3190 AS/NZS 3133 AS/NZS 3100 AS/NZS 3121
- Switched Unswitched
- Switched
- Terminal Capacity Earth
- 4 x 2.5mm² / 3 x 4 mm² screw terminal
- Terminal Capacity Live Neutral
- 4 x 2.5mm² / 3 x 4 mm² screw terminal
- Type
- RCD Protected Power Point
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 240V AC
- Weight
- 0.125kg
- Width
- 116mm
