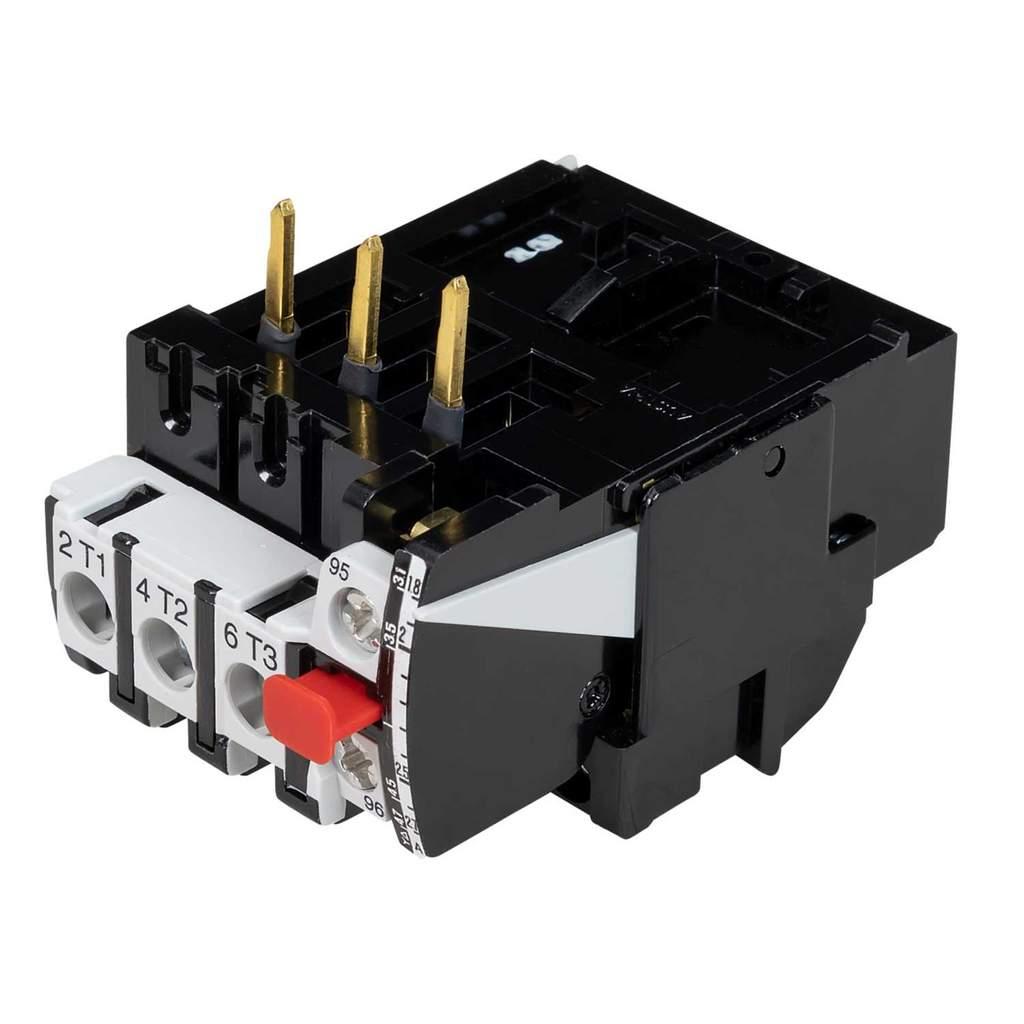

IMO 1.8 to 2.7A Thermal Overload Relay
Part Number: OL04D
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Thermal overload relay for direct mounting onto contactor
- Switches the contactor off in the event of an overload situation
- Adjustable overload range and manual reset function
- Normally open and normally closed auxiliary contacts
- IMO model number U12/16E2.7-MC
- Colour
- Black/Grey
- Dimensions
- (L)77 mm x (H)60 mm x (W)48 mm
- Guarantee
- 1 Year
- Height
- 60mm
- Length
- 77mm
- Mounting
- Direct to Contactor
- Overload Rating
- 1.8 - 2.7A
- Packaging Types
- Each
- Standards
- EN 60947-4-1 EN 60947-5-1 EN 60204 -1
- Suitable For
- CR01C to CR12C Contactors
- Weight
- 0.101kg
- Width
- 48mm
